LGA50D-01DADJJ
lmages are for reference only.LGA50D-01DADJJ
DC DC CONVERTER 0.6-5V 0.6-5V
Datasheet28-SMD Module
89,024 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Non-Isolated PoL Module, Digital DC DC Converter 2 Output 0.6 ~ 5V 0.6 ~ 5V 25A, 25A 7.5V - 14V Input
LGA50D-01DADJJ
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | ARTESYN / Advanced Energy |
| Series | LGA50D |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | RoHS Compliant |
| Type | Non-Isolated PoL Module, Digital |
| Number of Outputs | 2 |
| Voltage - Input (Min) | 7.5V |
| Voltage - Input (Max) | 14V |
| Voltage - Output 1 | 0.6 ~ 5V |
| Voltage - Output 2 | 0.6 ~ 5V |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 25A, 25A |
| Power (Watts) | - |
| Applications | ITE (Commercial) |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Efficiency | 95.5% |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 28-SMD Module |
| Size / Dimension | 1.00" L x 0.50" W x 0.48" H (25.4mm x 12.7mm x 12.2mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | - |
| Standard Number | - |
| Base Product Number | LGA50D |
| Voltage - Isolation | - |
| Product Attribute | |
 |
 |
 |

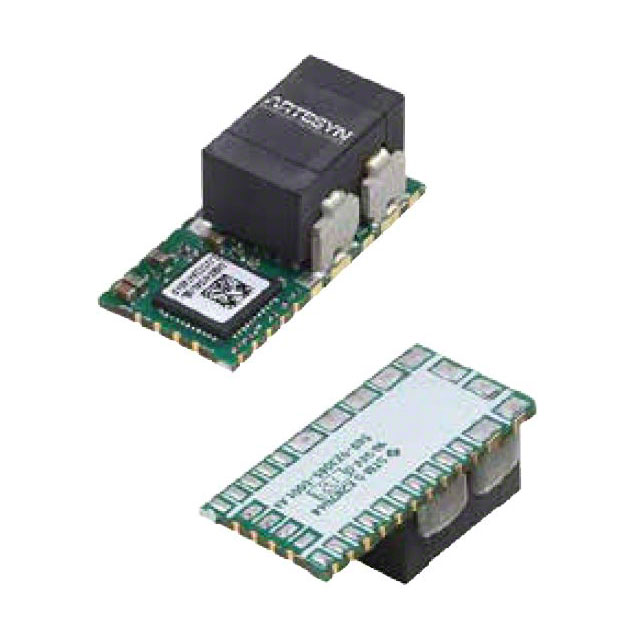

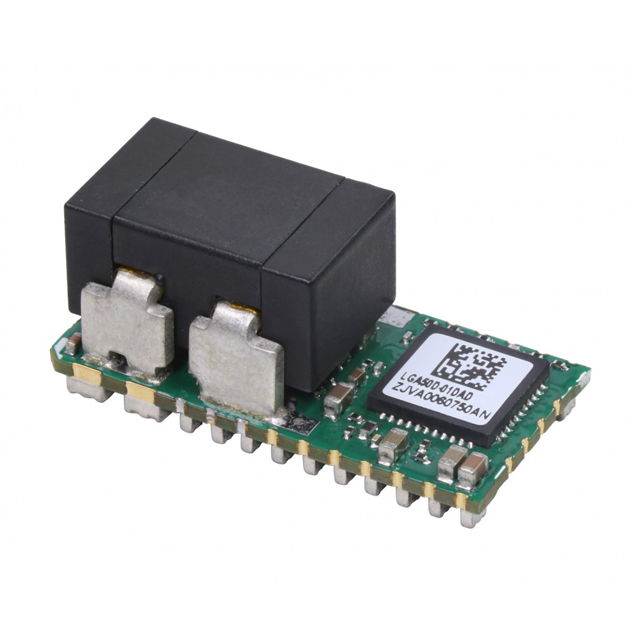

| Part Number | LGA50D-01DADJJ | LGA50D-01DADJLPJ | LGA50D-01DADJSBJ | 4AA12-P4-25PPM-M-E |
| Manufacturer | ARTESYN / Advanced Energy | ARTESYN / Advanced Energy | ARTESYN / Advanced Energy | ULTRAVOLT / Advanced Energy |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | ROHS3 Compliant |
| Description | DC DC CONVERTER 0.6-5V 0.6-5V | DC DC CNVRTR 0.6-3.3V 0.6-3.3V | DC DC CONVERTER 0.6-5V 0.6-5V | DC/DC CONVERTER |
| Series | ARTESYN / Advanced Energy | ARTESYN / Advanced Energy | ARTESYN / Advanced Energy | ULTRAVOLT / Advanced Energy |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Bulk |
