LH1500AAB
lmages are for reference only.LH1500AAB
SSR RELAY SPST-NO 150MA 0-350V
Datasheet6-SMD (0.300", 7.62mm)
66,058 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Solid State SPST-NO (1 Form A) 6-SMD (0.300", 7.62mm)
LH1500AAB
| Category | Relays - Solid State Relays SSR - |
| Manufacturer | Vishay Semiconductor Opto Division |
| Series | LH1500 |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Mounting Type | Surface Mount |
| Circuit | SPST-NO (1 Form A) |
| Output Type | AC, DC |
| Voltage - Input | 1.25VDC |
| Voltage - Load | 0 V ~ 350 V |
| Load Current | 150 mA |
| Termination Style | Gull Wing |
| Operating Temperature | -40°C ~ 85°C |
| Package / Case | 6-SMD (0.300", 7.62mm) |
| Supplier Device Package | 6-SMD |
| Approval Agency | cUR, DIN, FIMKO, UL |
| Grade | - |
| Qualification | - |
| Base Product Number | LH1500 |
| On-State Resistance (Max) | 20 Ohms |
| Product Attribute |  |
 |
 |
 |

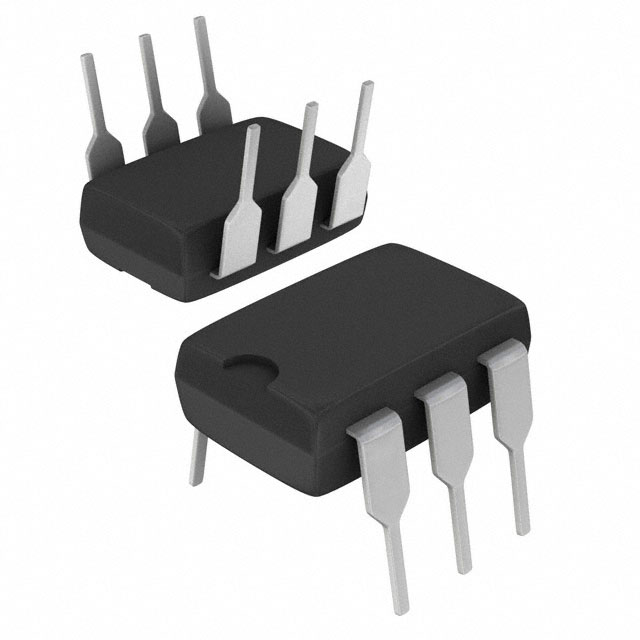

| Part Number | LH1500AABTR | LH1500AT | LH1501BAB | LH1501BABTR |
| Manufacturer | Vishay Semiconductor Opto Division | Vishay Semiconductor Opto Division | Vishay Semiconductor Opto Division | Vishay Semiconductor Opto Division |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |

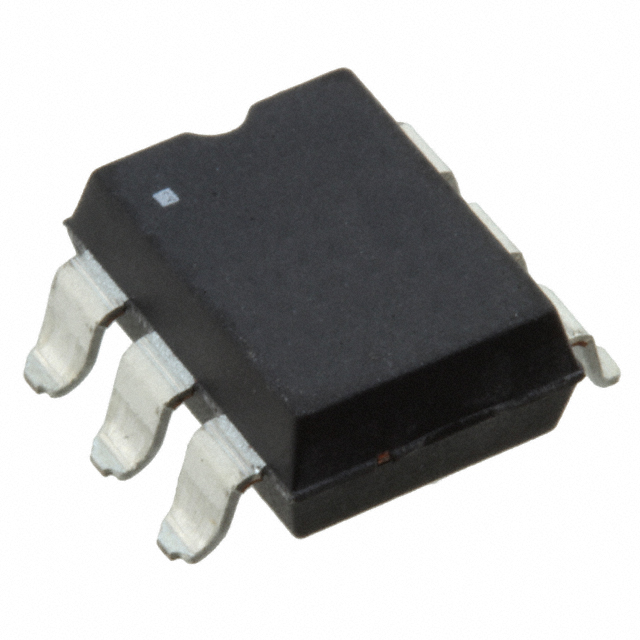

| Description | SSR RELAY SPST-NO 150MA 0-350V | SSR RELAY SPST-NO 150MA 0-350V | SSR RELAY SPST-NC 150MA 0-350V | SSR RELAY SPST-NC 150MA 0-350V |
| Series | LH1500 | LH1500 | LH1501 | LH1501 |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tube | Tube | Tape & Reel (TR)-->Cut Tape (CT) |
