LHL08TB273J

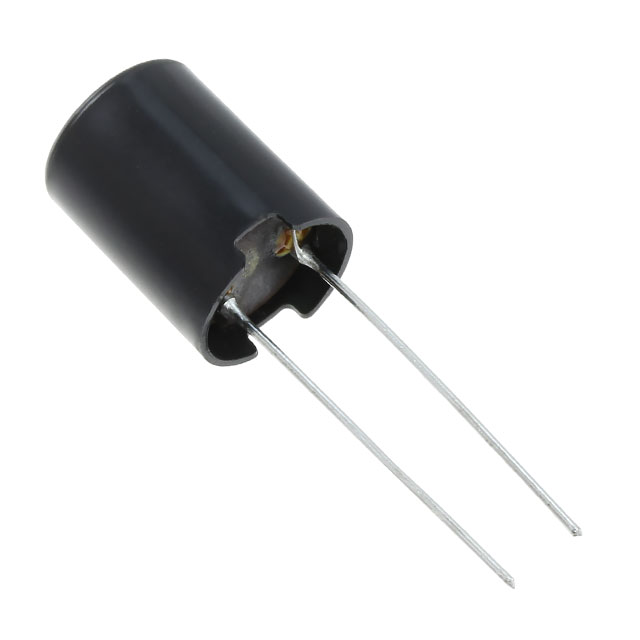

lmages are for reference only.LHL08TB273J
FIXED IND 27MH 42MA 90 OHM TH
DatasheetRadial, Vertical Cylinder
84,376 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
27 mH Unshielded Inductor 42 mA 90Ohm Max Radial, Vertical Cylinder
LHL08TB273J
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Taiyo Yuden |
| Series | LH, L Type |
| Packaging | Tape & Box (TB) |
| RoHS Status | ROHS3 Compliant |
| Type | - |
| Material - Core | Ferrite |
| Inductance | 27 mH |
| Tolerance | ±5% |
| Current Rating (Amps) | 42 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 90Ohm Max |
| Q @ Freq | 60 @ 79.6kHz |
| Frequency - Self Resonant | 250kHz |
| Ratings | - |
| Operating Temperature | -25°C ~ 105°C |
| Inductance Frequency - Test | 1 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Vertical Cylinder |
| Supplier Device Package | - |
| Size / Dimension | 0.354" Dia (9.00mm) |
| Height - Seated (Max) | 0.374" (9.50mm) |
| Base Product Number | - |
| Product Attribute |  |
|
|
|
| Part Number | LHL08TB220K | LHL08TB220K | LHL08TB220KH | LHL08TB220KR |
| Manufacturer | Taiyo Yuden | Taiyo Yuden | Taiyo Yuden | Taiyo Yuden |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 22UH 1.8A 68 MOHM TH | FIXED IND 22UH 1.8A 68 MOHM TH | FIXED IND 22UH 1.8A 68 MOHM TH | FIXED IND 22UH 1.8A 68 MOHM TH |
| Series | Taiyo Yuden | Taiyo Yuden | Taiyo Yuden | Taiyo Yuden |
| Packaging | Tape & Box (TB) | Tape & Box (TB) | Tape & Box (TB) | Tape & Box (TB) |
