LHL10TB6R8MS

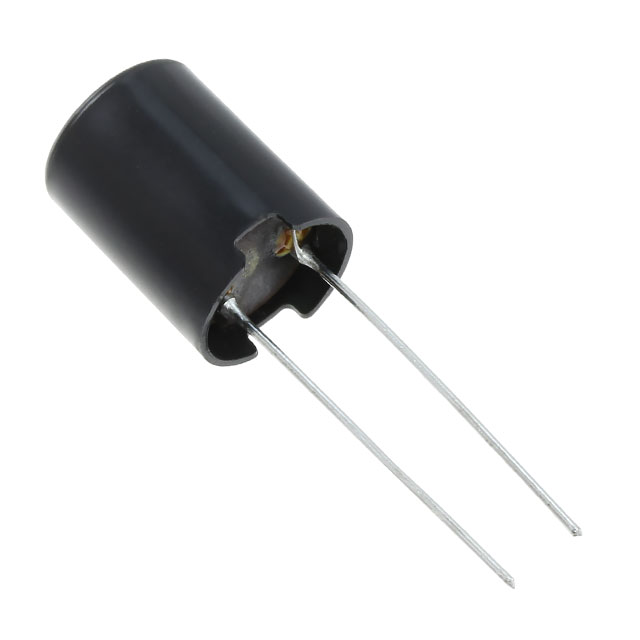

lmages are for reference only.LHL10TB6R8MS
FIXED IND 6.8UH 3.4A 28 MOHM TH
DatasheetRadial, Vertical Cylinder
49,185 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
6.8 µH Unshielded Inductor 3.4 A 28mOhm Max Radial, Vertical Cylinder
LHL10TB6R8MS
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Taiyo Yuden |
| Series | LH, L Type |
| Packaging | Tape & Box (TB) |
| RoHS Status | ROHS3 Compliant |
| Type | - |
| Material - Core | Ferrite |
| Inductance | 6.8 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 3.4 A |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 28mOhm Max |
| Q @ Freq | 50 @ 7.96MHz |
| Frequency - Self Resonant | 30MHz |
| Ratings | - |
| Operating Temperature | -25°C ~ 105°C |
| Inductance Frequency - Test | 7.96 MHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Vertical Cylinder |
| Supplier Device Package | - |
| Size / Dimension | 0.433" Dia (11.00mm) |
| Height - Seated (Max) | 0.551" (14.00mm) |
| Base Product Number | - |
| Product Attribute |  |
|
 |
|
| Part Number | LHL10TB6R8M | LHL10TB100K | LHL10TB101K | LHL10TB101K |
| Manufacturer | Taiyo Yuden | Taiyo Yuden | Taiyo Yuden | Taiyo Yuden |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 6.8UH 3.4A 28 MOHM TH | FIXED IND 10UH 3.2A 34 MOHM TH | FIXED IND 100UH 1.2A 180 MOHM TH | FIXED IND 100UH 1.2A 180 MOHM TH |
| Series | Taiyo Yuden | Taiyo Yuden | Taiyo Yuden | Taiyo Yuden |
| Packaging | Cut Tape (CT)-->Tape & Box (TB) | Tape & Box (TB) | Tape & Box (TB) | Tape & Box (TB) |
