LL4150GS18

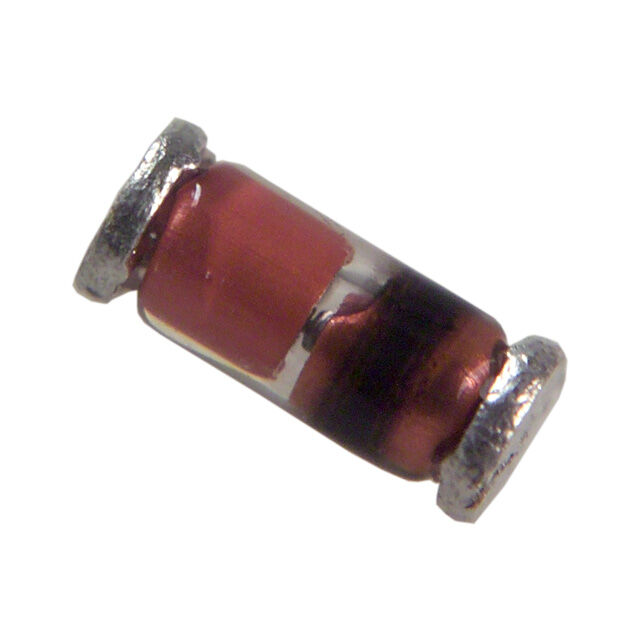

lmages are for reference only.LL4150GS18
DIODE GEN PURP 50V 600MA SOD80
DatasheetDO-213AC, MINI-MELF, SOD-80
29,797 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Diode 50 V 600mA Surface Mount SOD-80 MiniMELF
LL4150GS18
| Category | Discrete Semiconductor Products - Diodes - Rectifiers |
| Manufacturer | Vishay General Semiconductor - Diodes Division |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Technology | Standard |
| Voltage - DC Reverse (Vr) (Max) | 50 V |
| Current - Average Rectified (Io) | 600mA |
| Voltage - Forward (Vf) (Max) @ If | 1 V @ 200 mA |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 4 ns |
| Current - Reverse Leakage @ Vr | 100 nA @ 50 V |
| Capacitance @ Vr, F | 2.5pF @ 0V, 1MHz |
| Mounting Type | Surface Mount |
| Package / Case | DO-213AC, MINI-MELF, SOD-80 |
| Supplier Device Package | SOD-80 MiniMELF |
| Operating Temperature - Junction | -55°C ~ 175°C |
| Base Product Number | LL4150 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
|
|
 |

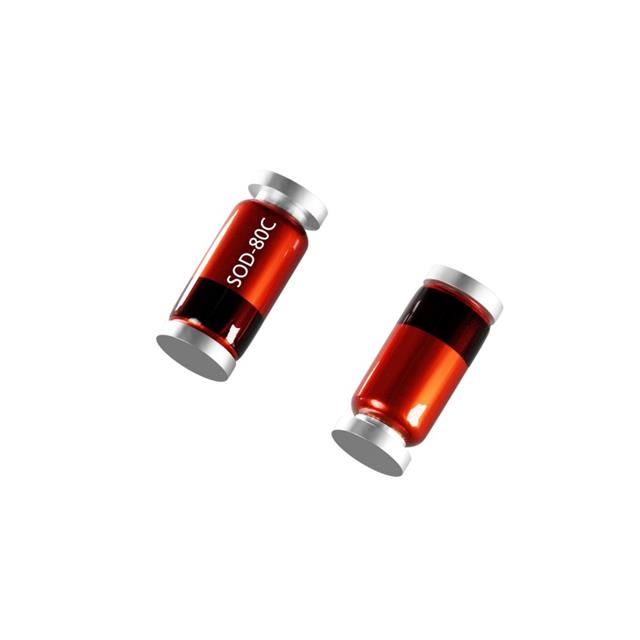

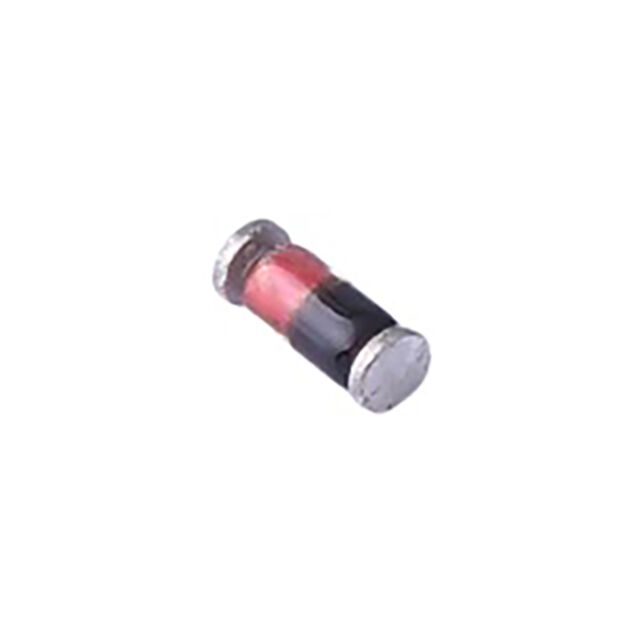

| Part Number | LL4150GS08 | LL41-GS08 | LL41-GS18 | LL4148 |
| Manufacturer | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division | Good-Ark Semiconductor |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DIODE GEN PURP 50V 300MA SOD80 | DIODE SCHOT 100V 100MA SOD80 | DIODE SCHOT 100V 100MA SOD80 | DIODE, SWITCHING, 150MA, 75V, MI |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
