LLP.2450.X.A.30
lmages are for reference only.LLP.2450.X.A.30
RF FILTER LOW PASS 2.45GHZ 0603
Datasheet0603 (1608 Metric), 6 PC Pad
99,826 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
2.45GHz Center Frequency Low Pass RF Filter (Radio Frequency) 100MHz Bandwidth 0.5dB 0603 (1608 Metric), 6 PC Pad
LLP.2450.X.A.30
| Category | Filters - RF Filters - |
| Manufacturer | Taoglas Limited |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT)--> |
| RoHS Status | ROHS3 Compliant |
| Frequency | 2.45GHz Center |
| Bandwidth | 100MHz |
| Filter Type | Low Pass |
| Ripple | 0.5dB |
| Insertion Loss | 0.5dB |
| Mounting Type | Surface Mount |
| Package / Case | 0603 (1608 Metric), 6 PC Pad |
| Size / Dimension | 0.063" L x 0.031" W (1.60mm x 0.80mm) |
| Height (Max) | 0.039" (1.00mm) |
| Base Product Number | LLP.2450 |
| Product Attribute |  |
 |
 |
 |

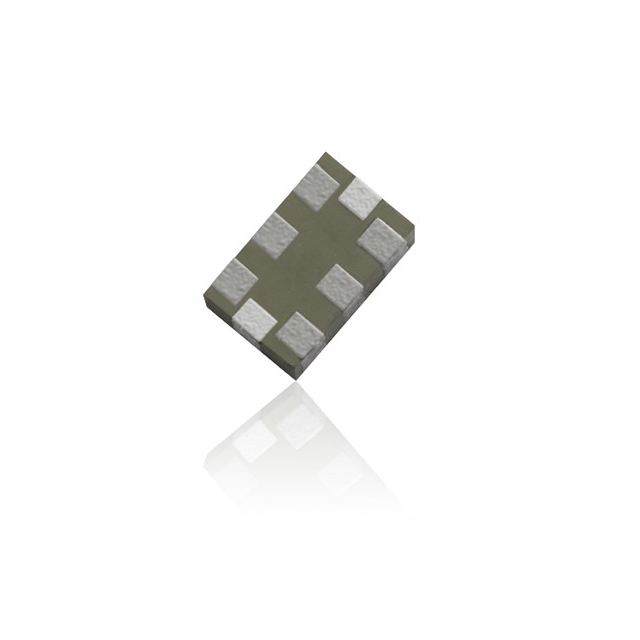

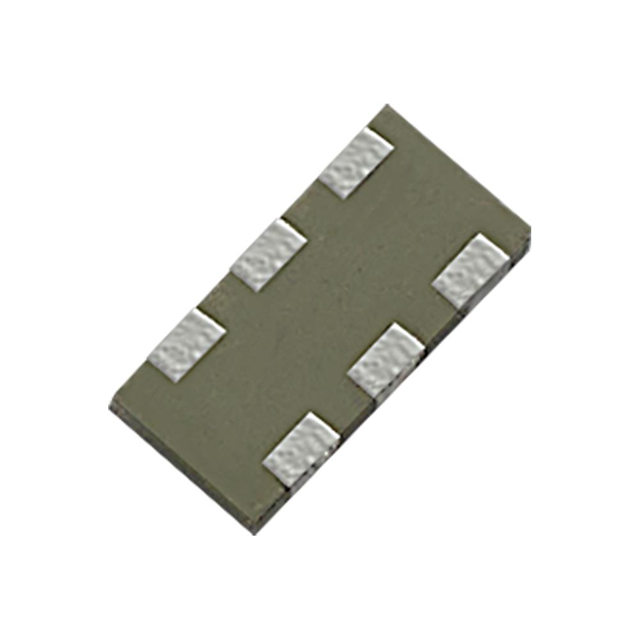

| Part Number | LLP.2500.X.A.30 | LLP.2500.X.B.30 | BPF2012LRAGR2400L | LP0402N5200ANTR |
| Manufacturer | Taoglas Limited | Taoglas Limited | Pulse Electronics | KYOCERA AVX |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | RF FILTER LOW PASS 2.45GHZ 0603 | RF FILTER LOW PASS 2.45GHZ 0805 | 2012 2.4GHZ BPF TYPEAG | RF FILTER LOW PASS 5.2GHZ 0402 |
| Series | - | - | - | LP0402N |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT)--> | Tape & Reel (TR)-->Cut Tape (CT)--> | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT)--> |
