LM1085RS-3.3
lmages are for reference only.Payment Methods
Delivery Services
Linear Voltage Regulator IC Positive Fixed 1 Output 3A TO-252-3
LM1085RS-3.3
| Category | Integrated Circuits (ICs) - Power Management PMIC - Voltage Regulators Linear-Low Drop Out LDO Regulators |
| Manufacturer | TAEJIN |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | RoHS Compliant |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 15V |
| Voltage - Output (Min/Fixed) | 3.3V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 1.5V @ 3A |
| Current - Output | 3A |
| Current - Quiescent (Iq) | - |
| PSRR | 65dB (120Hz) |
| Control Features | - |
| Protection Features | Over Current, Over Temperature, Short Circuit |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | TO-252-3, DPAK (2 Leads + Tab), SC-63 |
| Supplier Device Package | TO-252-3 |
| Base Product Number | - |
| Current - Supply (Max) | 10 mA |
| Product Attribute |  |
 |
 |
 |

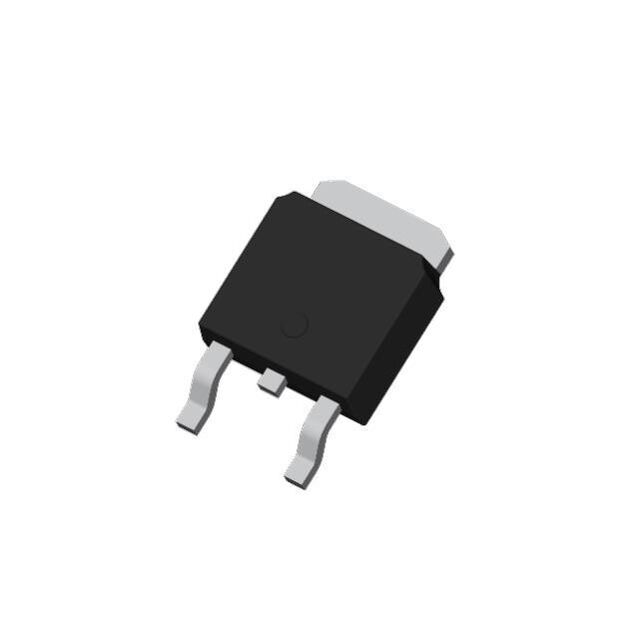

| Part Number | LM1085RS-ADJ | LM1085I-ADJ MDC | LM1085IS-12 | LM1085IS-12/NOPB |
| Manufacturer | TAEJIN | Texas Instruments | National Semiconductor | Texas Instruments |
| RoHS Status | RoHS Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | IC REG LINEAR ADJ 3A TO252-3 | IC REG LINEAR POS ADJ 3A DIESALE | IC REG LINEAR FIXED POS LDO REG | IC REG LIN 12V 3A DDPAK/TO263-3 |
| Series | TAEJIN | Texas Instruments | National Semiconductor | Texas Instruments |
| Packaging | Tape & Reel (TR) | Tube | Bulk | Tube |
