LM2950GTA-3.3
lmages are for reference only.Payment Methods
Delivery Services
Linear Voltage Regulator IC Positive Fixed 1 Output 100mA TO-92-3
LM2950GTA-3.3
| Category | Integrated Circuits (ICs) - Power Management PMIC - Voltage Regulators Linear-Low Drop Out LDO Regulators |
| Manufacturer | TAEJIN |
| Series | - |
| Packaging | Tape & Box (TB) |
| RoHS Status | RoHS Compliant |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 30V |
| Voltage - Output (Min/Fixed) | 3.3V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.45V @ 100mA |
| Current - Output | 100mA |
| Current - Quiescent (Iq) | 120 µA |
| PSRR | - |
| Control Features | - |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | TO-226-3, TO-92-3 (TO-226AA) Formed Leads |
| Supplier Device Package | TO-92-3 |
| Base Product Number | - |
| Current - Supply (Max) | 12 mA |
| Product Attribute |  |
 |
 |
 |

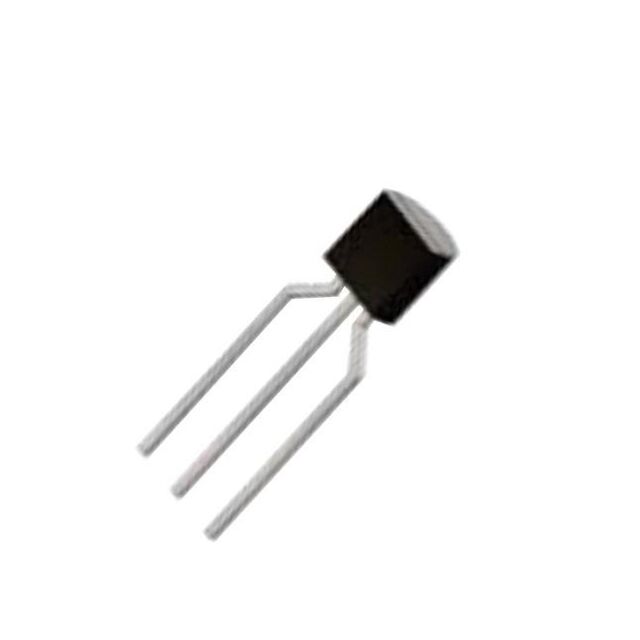

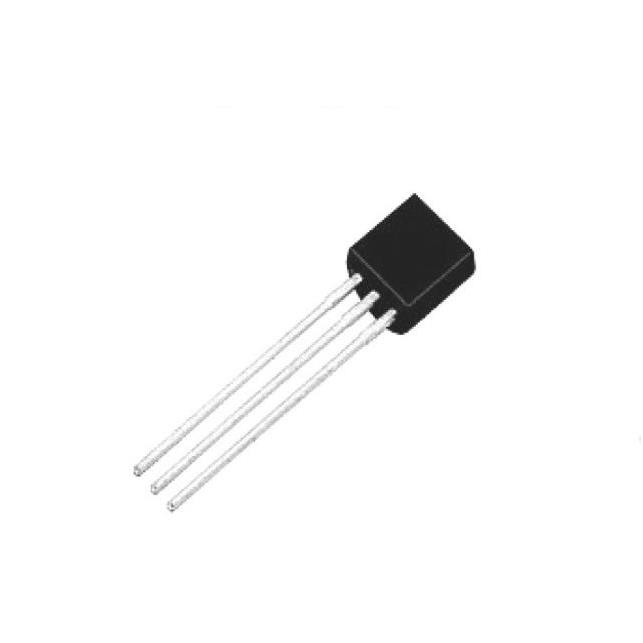

| Part Number | LM2950GTA-5.0 | LM2950G-2.5 | LM2950G-3.3 | LM2950G-5.0 |
| Manufacturer | TAEJIN | TAEJIN | TAEJIN | TAEJIN |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | IC REG LINEAR 5V 100MA TO92-3 | IC REG LINEAR 2.5V 100MA TO92-3 | IC REG LINEAR 3.3V 100MA TO92-3 | IC REG LINEAR 5V 100MA TO92-3 |
| Series | TAEJIN | TAEJIN | TAEJIN | TAEJIN |
| Packaging | Tape & Box (TB) | Bulk | Bulk | Bulk |
