LM3420M5X-8.4/NOPB

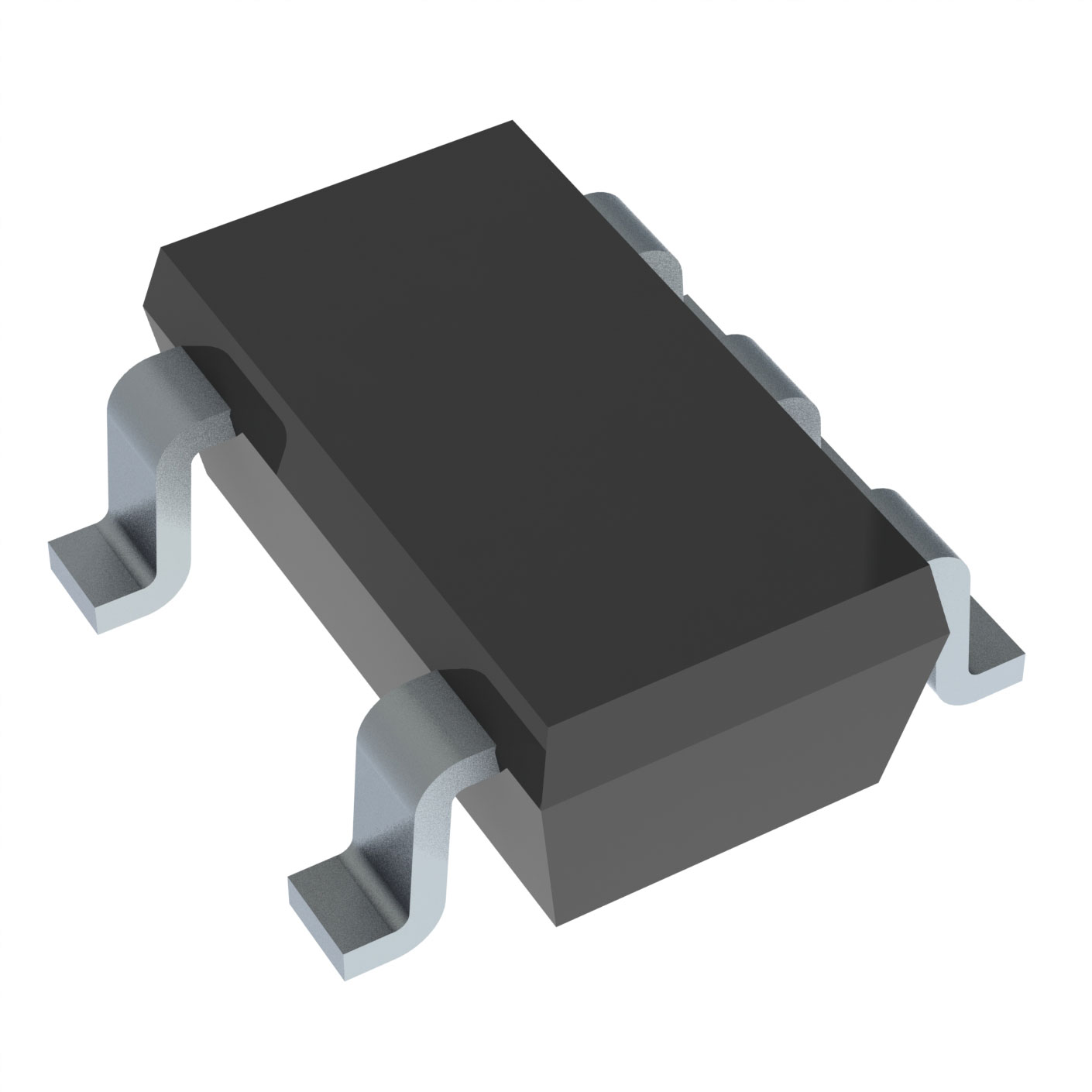

lmages are for reference only.LM3420M5X-8.4/NOPB
IC BATT CNTL LI-ION 2CEL SOT23-5
DatasheetSC-74A, SOT-753
55,341 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Charger IC Lithium Ion SOT-23-5
LM3420M5X-8.4/NOPB
| Category | Integrated Circuits (ICs) - Power Management PMIC - Battery Chargers |
| Manufacturer | Texas Instruments |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Battery Chemistry | Lithium Ion |
| Number of Cells | 2 |
| Current - Charging | - |
| Programmable Features | - |
| Fault Protection | - |
| Charge Current - Max | - |
| Battery Pack Voltage | 8.4V |
| Voltage - Supply (Max) | 20V |
| Interface | - |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | SC-74A, SOT-753 |
| Supplier Device Package | SOT-23-5 |
| Base Product Number | LM3420 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | LM3420M5X-8.2 | LM3420M5X-8.4 | LM3420M5-12.6 | LM3420M5-12.6/NOPB |
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | National Semiconductor |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC BATT CNTL LI-ION 2CEL SOT23-5 | IC BATT CNTL LI-ION 2CEL SOT23-5 | IC BATT CNTL LI-ION 3CEL SOT23-5 | IC SUPERVISOR PWR SUP SUPPORT |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Bulk |
