Buck Regulator Positive Output Step-Down DC-DC Controller IC 8-SOP
LM3842AD
| Category | Integrated Circuits (ICs) - Power Management PMIC - DC DC Switching Controllers |
| Manufacturer | TAEJIN |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | RoHS Compliant |
| Output Type | Transistor Driver |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Number of Outputs | 1 |
| Output Phases | 1 |
| Voltage - Supply (Vcc/Vdd) | 30V |
| Frequency - Switching | 52kHz |
| Duty Cycle (Max) | 96% |
| Synchronous Rectifier | No |
| Clock Sync | No |
| Serial Interfaces | - |
| Control Features | Enable, Frequency Control |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOP |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

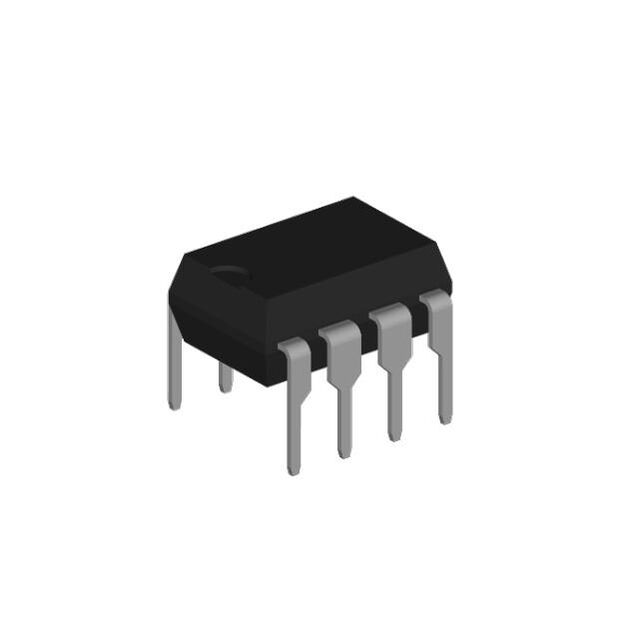

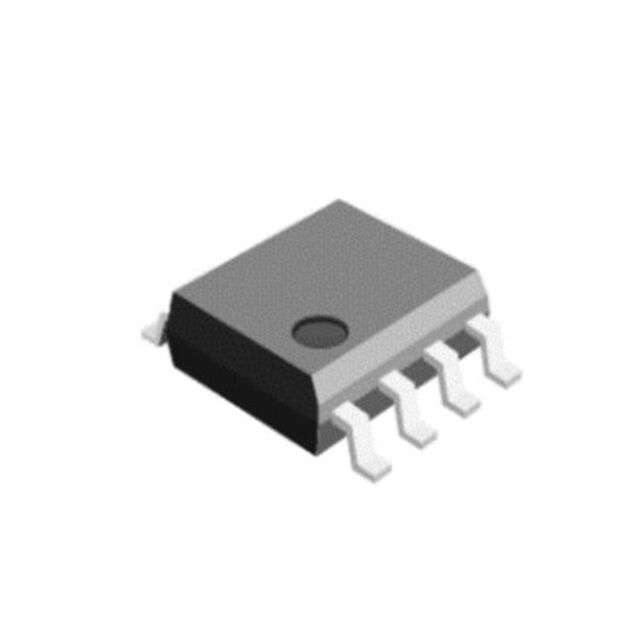

| Part Number | LM3842AN | LM3843AD | LM3843AN | LM3017LEX/NOPB |
| Manufacturer | TAEJIN | TAEJIN | TAEJIN | Texas Instruments |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | ROHS3 Compliant |
| Description | IC REG CTRLR MULT TOPOLOGY DIP-8 | IC REG CTRLR MULT TOPOLOGY SOP-8 | IC REG CTRLR MULT TOPOLOGY DIP-8 | IC REG CTRLR BOOST 10WQFN |
| Series | - | - | - | - |
| Packaging | Tube | Tape & Reel (TR) | Tube | Tape & Reel (TR) |
