LM48520TL/NOPB
lmages are for reference only.LM48520TL/NOPB
LM48520 BOOSTED STEREO CLASS D A
Datasheet25-WFBGA, DSBGA
97,339 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Amplifier IC 2-Channel (Stereo) Class D 25-DSBGA (2.46x2.46)
LM48520TL/NOPB
| Category | Integrated Circuits (ICs) - Linear - Amplifiers |
| Manufacturer | National Semiconductor |
| Series | Boomer® |
| Packaging | Bulk |
| RoHS Status | |
| Type | Class D |
| Output Type | 2-Channel (Stereo) |
| Max Output Power x Channels @ Load | 1.3W x 2 @ 8Ohm |
| Voltage - Supply | 2.4V ~ 5.5V |
| Features | Depop, Differential Inputs, Short-Circuit Protection, Shutdown |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Supplier Device Package | 25-DSBGA (2.46x2.46) |
| Package / Case | 25-WFBGA, DSBGA |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
| Product Attribute | |
 |
 |
 |

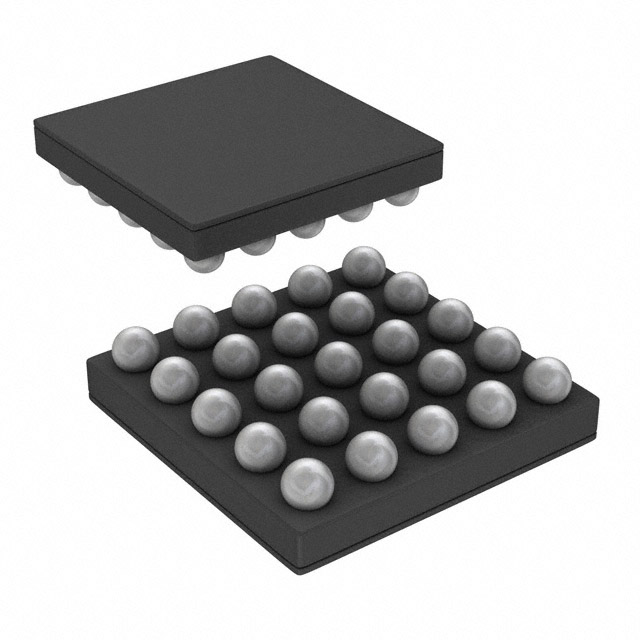

| Part Number | LM48520TL/NOPB | LM48520TL | LM48520TLE/NOPB | LM48520TLX/NOPB |
| Manufacturer | Texas Instruments | National Semiconductor | Texas Instruments | Texas Instruments |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC AMP CLASS D STER 1.3W 25DSBGA | AUDIO AMPLIFIER, 1.1W, 2 CHANNEL | IC AMP CLASS D STER 1.3W 25DSBGA | IC AMP CLASS D STER 1.3W 25DSBGA |
| Series | Boomer® | Boomer® | Boomer® | Boomer® |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Bulk | Tape & Reel (TR) | Tape & Reel (TR) |
