LM4917SD/NOPB
lmages are for reference only.LM4917SD/NOPB
LM4917 LM4917 GROUND-REFERENCED,
Datasheet14-WFDFN Exposed Pad
87,713 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Amplifier IC Headphones, 2-Channel (Stereo) Class AB 14-WSON (4x3)
LM4917SD/NOPB
| Category | Integrated Circuits (ICs) - Linear - Amplifiers |
| Manufacturer | National Semiconductor |
| Series | Boomer® |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Type | Class AB |
| Output Type | Headphones, 2-Channel (Stereo) |
| Max Output Power x Channels @ Load | 95mW x 2 @ 16Ohm |
| Voltage - Supply | 1.4V ~ 3.6V |
| Features | Depop, Short-Circuit and Thermal Protection, Shutdown |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Supplier Device Package | 14-WSON (4x3) |
| Package / Case | 14-WFDFN Exposed Pad |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
| Product Attribute | |
 |
 |
 |

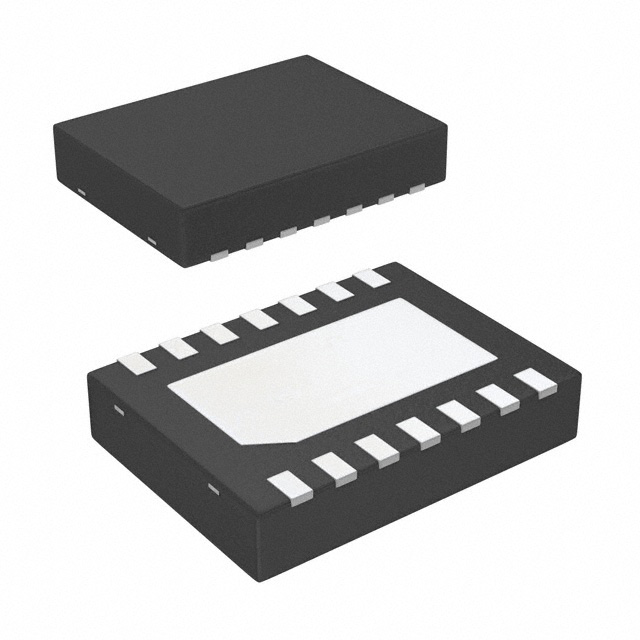

| Part Number | LM4917SD/NOPB | LM4917SDX | LM4651N/NOPB | LM4652TA/NOPB |
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| RoHS Status | ROHS3 Compliant | RoHS non-compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC AMP CLASS AB STER 95MW 14WSON | IC AMP CLASS AB STER 95MW 14WSON | IC AMP CLASS D MONO 170W 28DIP | IC AMP CLSS D MONO 170W TO220-15 |
| Series | Boomer® | Boomer® | Overture™ | Overture™ |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tube | Tube |
