LMTOE78_05-0.5
lmages are for reference only.LMTOE78_05-0.5
NON-ISOLATED POL MODULE DC DC CO
Datasheet4-SMD Module
42,626 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Non-Isolated PoL Module DC DC Converter 1 Output 5V 500mA 6.5V - 36V Input
LMTOE78_05-0.5
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | GAPTEC Electronic |
| Series | LMTOE78_0.5 |
| Packaging | Cut Tape (CT)-->Retail Package |
| RoHS Status | ROHS3 Compliant |
| Type | Non-Isolated PoL Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 6.5V |
| Voltage - Input (Max) | 36V |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 500mA |
| Power (Watts) | - |
| Applications | ITE (Commercial) |
| Features | - |
| Operating Temperature | -40°C ~ 85°C (With Derating) |
| Efficiency | 90% |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 4-SMD Module |
| Size / Dimension | 0.47" L x 0.47" W x 0.18" H (12.0mm x 12.0mm x 4.5mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | - |
| Standard Number | 62368-1 |
| Base Product Number | - |
| Voltage - Isolation | - |
| Product Attribute |  |
 |
 |
 |

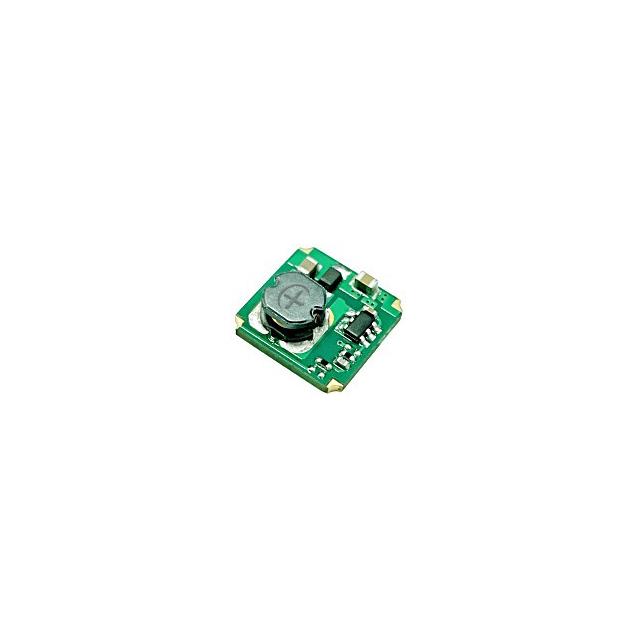

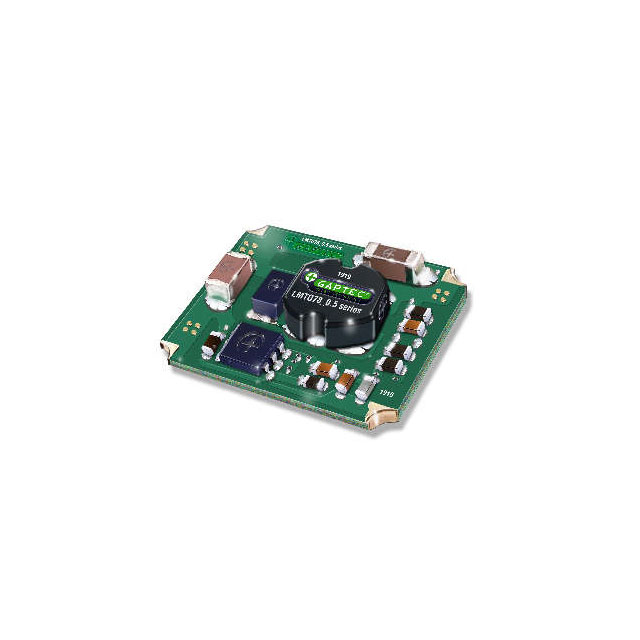

| Part Number | LMTOE78_03-0.5 | LMTOE78_15-0.5 | LMTO78_03-0.5 | LMTO78_05-0.5 |
| Manufacturer | GAPTEC Electronic | GAPTEC Electronic | GAPTEC Electronic | GAPTEC Electronic |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | NON-ISOLATED POL MODULE DC DC CO | NON-ISOLATED POL MODULE DC DC CO | DC-DC POL | DC-DC POL |
| Series | GAPTEC Electronic | GAPTEC Electronic | GAPTEC Electronic | GAPTEC Electronic |
| Packaging | Cut Tape (CT)-->Retail Package | Cut Tape (CT)-->Retail Package | Cut Tape (CT)-->Tube | Cut Tape (CT)-->Tube |
