LNA-30-06001800-35-20P
lmages are for reference only.LNA-30-06001800-35-20P
IC RF AMP VSAT 6GHZ-18GHZ MODULE
DatasheetModule, SMA Connectors
93,204 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
RF Amplifier IC VSAT 6GHz ~ 18GHz Module
LNA-30-06001800-35-20P
| Category | RF and Wireless - RF Amplifiers - |
| Manufacturer | L3 Narda-MITEQ |
| Series | LNA |
| Packaging | Box |
| RoHS Status | RoHS Compliant |
| Frequency | 6GHz ~ 18GHz |
| P1dB | 20dBm |
| Gain | 30dB |
| Noise Figure | 3.5dB |
| RF Type | VSAT |
| Voltage - Supply | 15V |
| Current - Supply | 350mA |
| Test Frequency | 6GHz ~ 18GHz |
| Mounting Type | Connector Mount |
| Package / Case | Module, SMA Connectors |
| Supplier Device Package | Module |
| Base Product Number | LNA-30 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

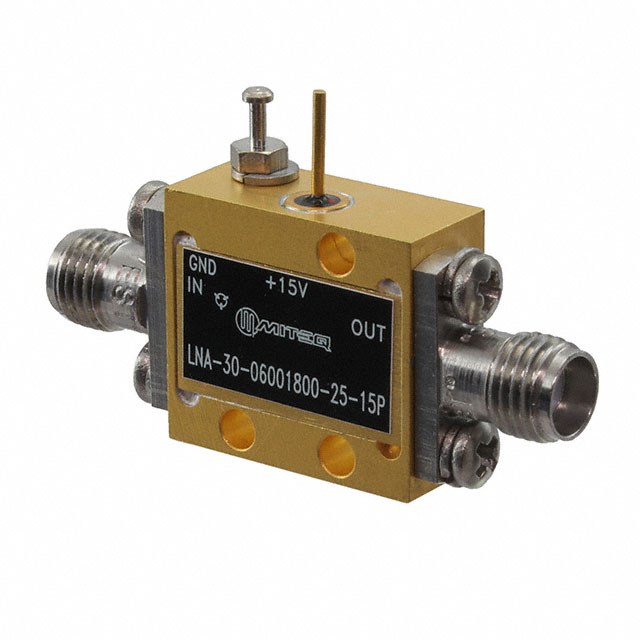

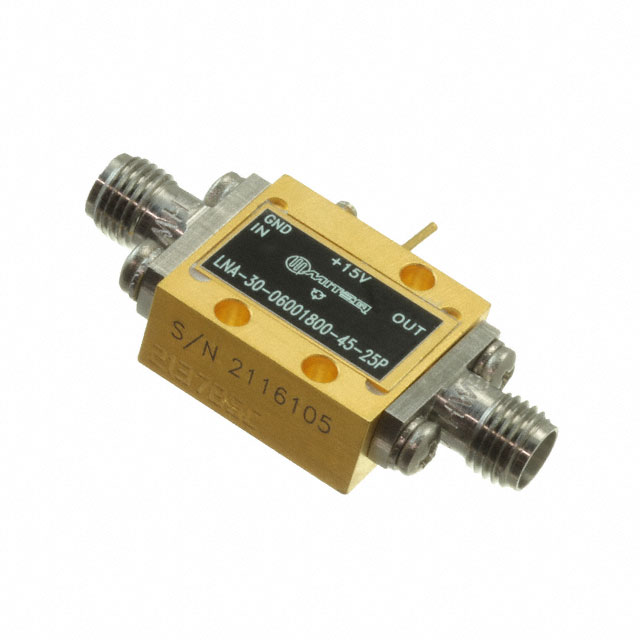

| Part Number | LNA-30-06001800-25-15P | LNA-30-06001800-45-25P | LNA-30-00100400-13-10P | LNA-30-00100400-30-20P |
| Manufacturer | L3 Narda-MITEQ | L3 Narda-MITEQ | L3 Narda-MITEQ | L3 Narda-MITEQ |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | |
| Description | IC RF AMP VSAT 6GHZ-18GHZ MODULE | IC RF AMP VSAT 6GHZ-18GHZ MODULE | IC RF AMP VSAT 100MHZ-4GHZ MOD | IC RF AMP VSAT 100MHZ-4GHZ MOD |
| Series | LNA | LNA | LNA | LNA |
| Packaging | Box | Box | Box | Box |
