LNK6777E
lmages are for reference only.LNK6777E
IC OFFLINE SWITCH FLYBACK 7ESIP
Datasheet7-SSIP, 6 Leads, Exposed Pad, Formed Leads
74,183 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Converter Offline Flyback Topology 120kHz ~ 136kHz eSIP-7C
LNK6777E
| Category | Integrated Circuits (ICs) - Power Management PMIC - AC DC Converters-Offline Switches |
| Manufacturer | Power Integrations |
| Series | LinkSwitch™-HP |
| Packaging | Tube |
| RoHS Status | RoHS Compliant |
| Output Isolation | Isolated |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 725V |
| Topology | Flyback |
| Voltage - Supply (Vcc/Vdd) | - |
| Duty Cycle | 64% |
| Frequency - Switching | 120kHz ~ 136kHz |
| Power (Watts) | 117 W |
| Fault Protection | Current Limiting, Over Load, Over Temperature, Over Voltage, Short Circuit |
| Control Features | - |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Package / Case | 7-SSIP, 6 Leads, Exposed Pad, Formed Leads |
| Supplier Device Package | eSIP-7C |
| Mounting Type | Through Hole |
| Base Product Number | LNK6777 |
| Voltage - Start Up | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

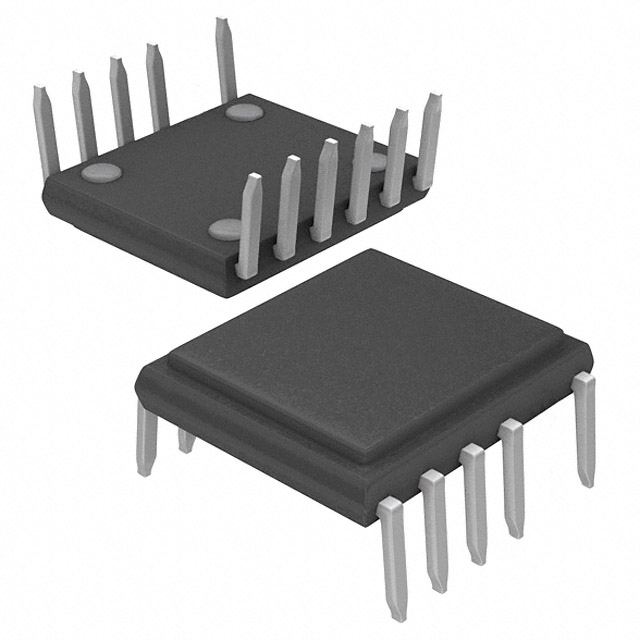

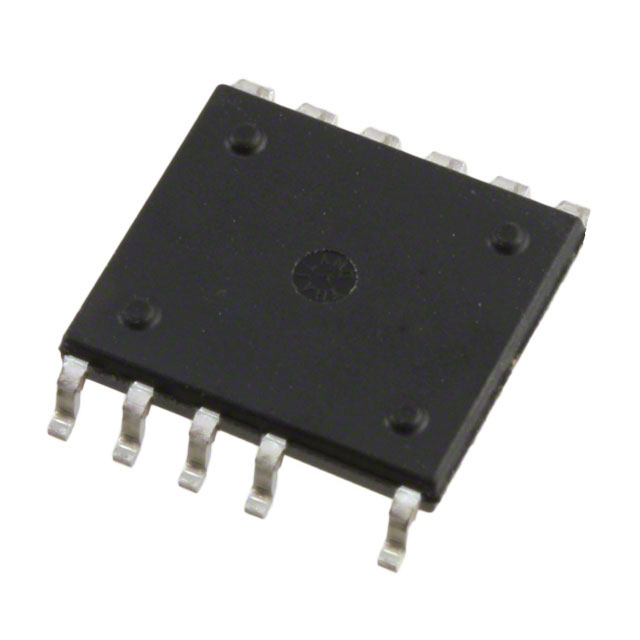

| Part Number | LNK6777K | LNK6777K-TL | LNK6777V | LNK6763E |
| Manufacturer | Power Integrations | Power Integrations | Power Integrations | Power Integrations |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | IC OFFLINE SWITCH FLYBACK 12ESOP | IC OFFLINE SWITCH FLYBACK 12ESOP | IC OFFLINE SWITCH FLYBACK 12EDIP | IC OFFLINE SWITCH FLYBACK 7ESIP |
| Series | LinkSwitch™-HP | LinkSwitch™-HP | LinkSwitch™-HP | LinkSwitch™-HP |
| Packaging | Tube | Tape & Reel (TR)-->Cut Tape (CT) | Tube | Tube |
