LNX2V682MSEHBN
lmages are for reference only.Payment Methods
Delivery Services
6800 µF 350 V Aluminum Electrolytic Capacitors Radial, Can - Screw Terminals 20000 Hrs @ 85°C
LNX2V682MSEHBN
| Category | Capacitors - Aluminum Electrolytic Capacitors - |
| Manufacturer | Nichicon |
| Series | LNX |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 6800 µF |
| Tolerance | ±20% |
| Voltage - Rated | 350 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 20000 Hrs @ 85°C |
| Operating Temperature | -25°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 16 A @ 120 Hz |
| Ripple Current @ High Frequency | 22.4 A @ 10 kHz |
| Lead Spacing | 1.252" (31.80mm) |
| Size / Dimension | 3.000" Dia (76.20mm) |
| Height - Seated (Max) | 5.236" (133.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Base Product Number | - |
| Impedance | - |
| Product Attribute | |
 |
|
|

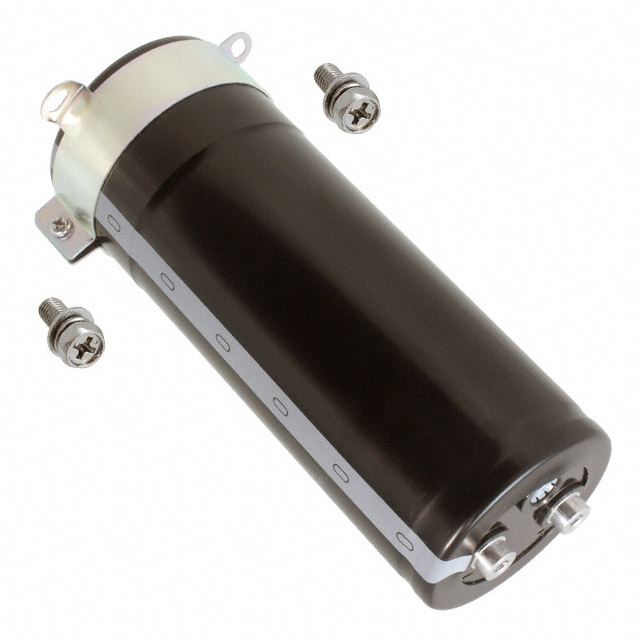

| Part Number | LNX2V682MSEHBB | LNX2V682MSEG | LNX2V682MSEGBB | LNX2V682MSEGBN |
| Manufacturer | Nichicon | Nichicon | Nichicon | Nichicon |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP ALUM 6800UF 20% 350V SCREW | CAP ALUM 6800UF 20% 350V SCREW | CAP ALUM 6800UF 20% 350V SCREW | CAP ALUM 6800UF 20% 350V SCREW |
| Series | Nichicon | Nichicon | Nichicon | Nichicon |
| Packaging | Bulk | Bulk | Bulk | Bulk |
