LO L296-R2S2-24-0-20-R18-ZR-MM

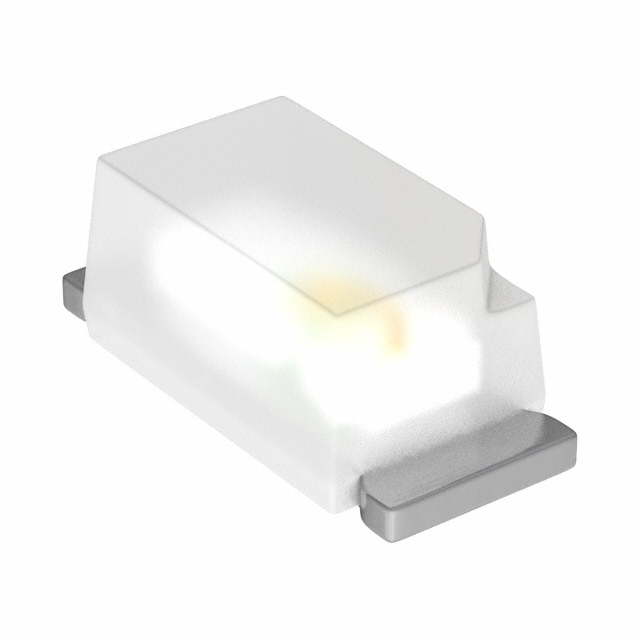

lmages are for reference only.LO L296-R2S2-24-0-20-R18-ZR-MM
LED SMARTLED 0603 SMD
Datasheet0603 (1608 Metric)
12,799 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Orange 606nm LED Indication - Discrete 2V 0603 (1608 Metric)
LO L296-R2S2-24-0-20-R18-ZR-MM
| Category | Optoelectronics - LED Indication Discrete - |
| Manufacturer | ams-OSRAM USA INC. |
| Series | SMARTLED® 0603 |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Color | Orange |
| Configuration | - |
| Lens Color | White |
| Lens Transparency | Diffused |
| Millicandela Rating | - |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 1.30mm x 0.80mm |
| Voltage - Forward (Vf) (Typ) | 2V |
| Current - Test | 20mA |
| Viewing Angle | 160° |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | 606nm |
| Wavelength - Peak | 610nm |
| Features | - |
| Package / Case | 0603 (1608 Metric) |
| Supplier Device Package | 0603 |
| Size / Dimension | 1.70mm L x 0.80mm W |
| Height (Max) | 0.67mm |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
| Product Attribute | |
|
|
|
| Part Number | LO L296-R1S1-34-0-20-R18-Z-HE | LO L296-R2S2-34-0-20-R18-Z-JC | LO 3336-T1U2-24 | LO 3336-T1V2-24 |
| Manufacturer | ams-OSRAM USA INC. | ams-OSRAM USA INC. | ams-OSRAM USA INC. | ams-OSRAM USA INC. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | LED ORANGE DIFFUSED 0603 SMD | LED ORANGE DIFFUSED 0603 SMD | LED ORANGE CLEAR T-1 T/H | LED ORANGE CLEAR T-1 T/H |
| Series | ams-OSRAM USA INC. | ams-OSRAM USA INC. | ams-OSRAM USA INC. | ams-OSRAM USA INC. |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Bulk | Bulk |
