LP39542RL/NOPB
lmages are for reference only.LP39542RL/NOPB
IC LED DRVR RGLTR PWM 36DSBGA
Datasheet36-WFBGA, DSBGA
69,487 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
LED Driver IC 13 Output DC DC Regulator Step-Up (Boost) PWM Dimming 900mA (Switch) 36-DSBGA (3.5x3.24)
LP39542RL/NOPB
| Category | Integrated Circuits (ICs) - Power Management PMIC - LED Drivers |
| Manufacturer | National Semiconductor |
| Series | - |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Type | DC DC Regulator |
| Topology | Step-Up (Boost) |
| Internal Switch(s) | Yes |
| Number of Outputs | 13 |
| Voltage - Supply (Min) | 3V |
| Voltage - Supply (Max) | 5.5V |
| Voltage - Output | 4V ~ 5.3V |
| Current - Output / Channel | 900mA (Switch) |
| Frequency | 2MHz |
| Dimming | PWM |
| Applications | Backlight, Camera Flash |
| Operating Temperature | -30°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 36-WFBGA, DSBGA |
| Supplier Device Package | 36-DSBGA (3.5x3.24) |
| Base Product Number | LP39542 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
|
 |
 |
| Part Number | LP3931ISQ/NOPB | LP3931ISQ/NOPB | LP3931ISQX/NOPB | LP3933SL/NOPB |
| Manufacturer | National Semiconductor | Texas Instruments | Texas Instruments | Texas Instruments |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |

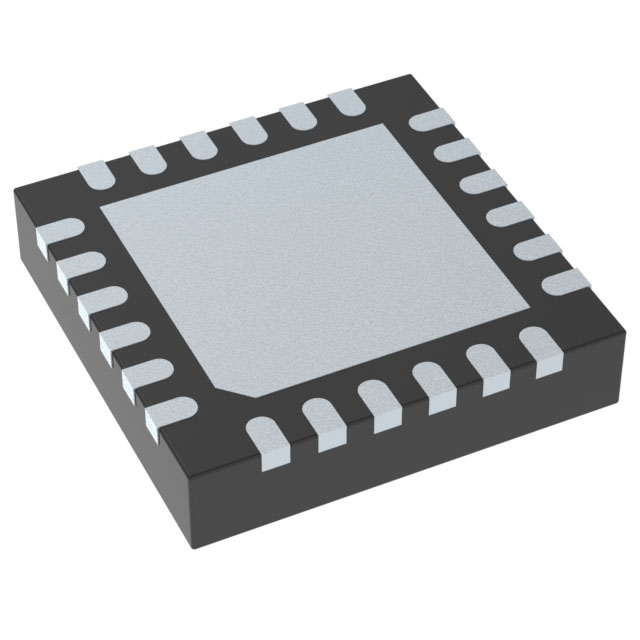

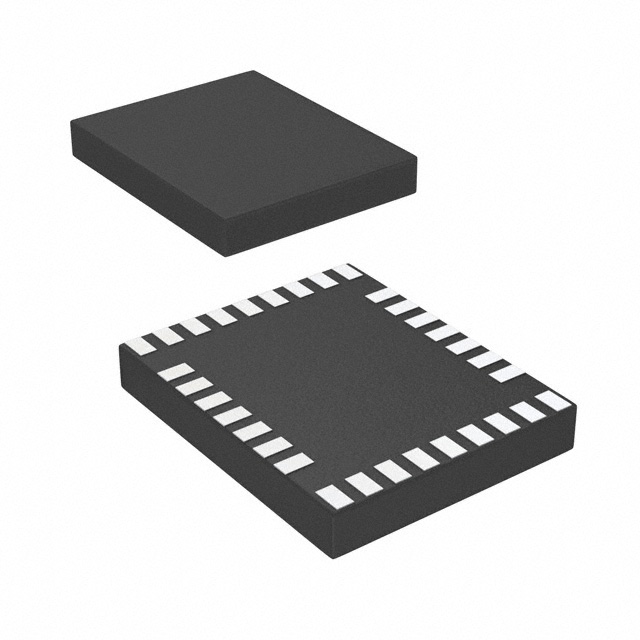

| Description | IC LED DRV RGLTR PWM 24WQFN | IC LED DRV RGLTR PWM 24WQFN | IC LED DRV RGLTR PWM 24WQFN | IC LED DRV RGLTR PWM 32TLGA |
| Series | - | - | - | - |
| Packaging | Bulk | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR) |
