LP3965ES-ADJ
lmages are for reference only.LP3965ES-ADJ
IC REG LIN POS ADJ 1.5A DDPAK
DatasheetTO-263-6, D2PAK (5 Leads + Tab), TO-263BA
86,055 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Linear Voltage Regulator IC Positive Adjustable 1 Output 1.5A DDPAK/TO-263-5
LP3965ES-ADJ
| Category | Integrated Circuits (ICs) - Power Management PMIC - Voltage Regulators Linear-Low Drop Out LDO Regulators |
| Manufacturer | National Semiconductor |
| Series | - |
| Packaging | Bulk |
| RoHS Status | RoHS non-compliant |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 7V |
| Voltage - Output (Min/Fixed) | 1.216V |
| Voltage - Output (Max) | 5.1V |
| Voltage Dropout (Max) | 0.55V @ 1.5A |
| Current - Output | 1.5A |
| Current - Quiescent (Iq) | 9 mA |
| PSRR | 60dB ~ 40dB (120Hz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature, Short Circuit |
| Operating Temperature | -40°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA |
| Supplier Device Package | DDPAK/TO-263-5 |
| Base Product Number | LP3965 |
| Current - Supply (Max) | 15 mA |
| Product Attribute | |
 |
 |
 |

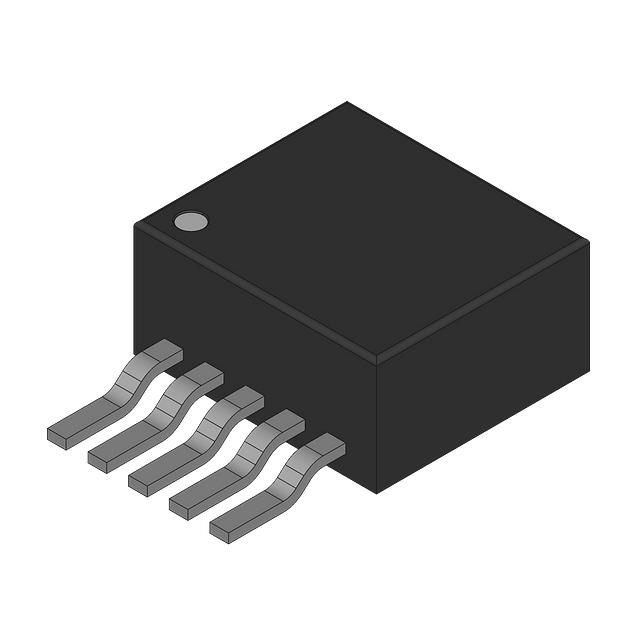

| Part Number | LP3965ES-ADJ | LP3965ES-ADJ-TI | LP3965ES-ADJ/NOPB | LP3965ES-1.8 |
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| RoHS Status | ROHS3 Compliant | RoHS non-compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC REG LINEAR POS ADJ 1.5A DDPAK | IC REG LIN ADJ POS LDO REG 1.2 | IC REG LINEAR POS ADJ 1.5A DDPAK | IC REG LINEAR 1.8V 1.5A DDPAK |
| Series | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Packaging | Tube | Bulk | Tube | Tube |
