LPWI201610BR47T
lmages are for reference only.LPWI201610BR47T
FIXED IND 470NH 4.8A 27MOHM SMD
Datasheet0806 (2016 Metric)
44,938 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
470 nH Shielded Thin Film Inductor 4.8 A 27mOhm Max 0806 (2016 Metric)
LPWI201610BR47T
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Littelfuse Inc. |
| Series | LPWI |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Thin Film |
| Material - Core | Metal Composite |
| Inductance | 470 nH |
| Tolerance | ±20% |
| Current Rating (Amps) | 4.8 A |
| Current - Saturation (Isat) | 5.7A |
| Shielding | Shielded |
| DC Resistance (DCR) | 27mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 1 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0806 (2016 Metric) |
| Supplier Device Package | 0806 |
| Size / Dimension | 0.079" L x 0.063" W (2.00mm x 1.60mm) |
| Height - Seated (Max) | 0.039" (1.00mm) |
| Base Product Number | - |
| Product Attribute |  |
|
 |
 |

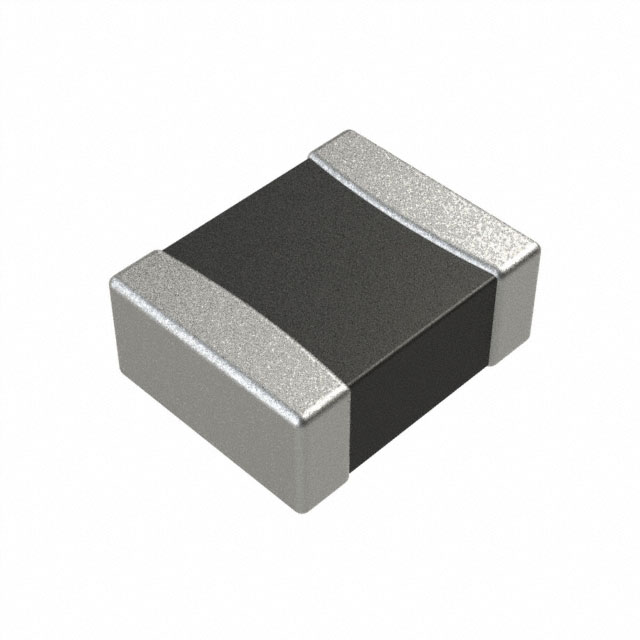

| Part Number | LPWI201610B2R2T | LPWI201610B2R2T | LPWI201610H1R0T | LPWI201610H1R5T |
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 2.2UH 1.9A 140MOHM SMD | FIXED IND 2.2UH 1.9A 140MOHM SMD | FIXED IND 1UH 3.1A 45 MOHM SMD | FIXED IND 1.5UH 2.5A 100MOHM SMD |
| Series | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
