LQH2HPN3R3MJ0L
lmages are for reference only.LQH2HPN3R3MJ0L
FIXED IND 3.3UH 950MA 276MOHM SM
Datasheet1008 (2520 Metric)
54,177 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
3.3 µH Shielded Wirewound Inductor 950 mA 276mOhm Max 1008 (2520 Metric)
LQH2HPN3R3MJ0L
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Murata Electronics |
| Series | LQH2 |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Wirewound |
| Material - Core | - |
| Inductance | 3.3 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 950 mA |
| Current - Saturation (Isat) | - |
| Shielding | Shielded |
| DC Resistance (DCR) | 276mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 10MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 85°C |
| Inductance Frequency - Test | 1 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 1008 (2520 Metric) |
| Supplier Device Package | 1008 (2520 Metric) |
| Size / Dimension | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| Height - Seated (Max) | 0.039" (1.00mm) |
| Base Product Number | LQH2HPN |
| Product Attribute |  |
|
 |
|

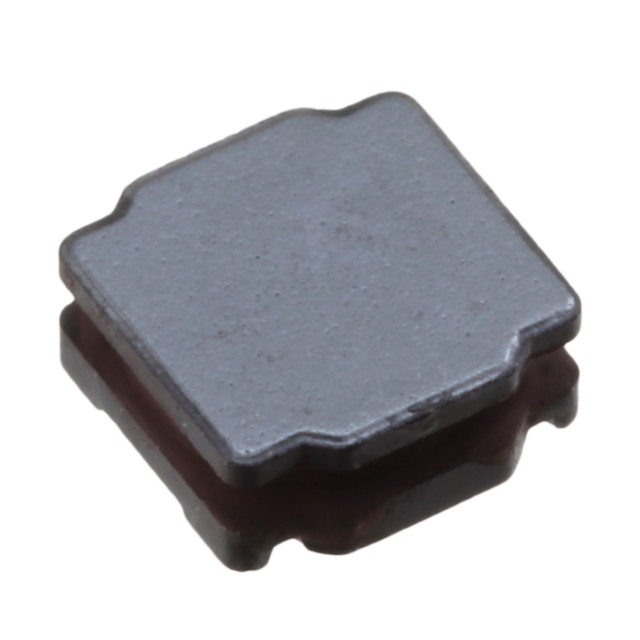

| Part Number | LQH2HPN3R3MDRL | LQH2HPN3R3MDRL | LQH2HPN3R3MG0L | LQH2HPN3R3MG0L |
| Manufacturer | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 3.3UH 730MA 540MOHM SM | FIXED IND 3.3UH 730MA 540MOHM SM | FIXED IND 3.3UH 810MA 324MOHM SM | FIXED IND 3.3UH 810MA 324MOHM SM |
| Series | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR) |
