LQP03TN1N1C02D
lmages are for reference only.LQP03TN1N1C02D
FIXED IND 1.1NH 750MA 100MOHM SM
Datasheet0201 (0603 Metric)
91,969 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
1.1 nH Unshielded Thick Film Inductor 750 mA 100mOhm Max 0201 (0603 Metric)
LQP03TN1N1C02D
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Murata Electronics |
| Series | LQP03 |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Thick Film |
| Material - Core | Non-Magnetic |
| Inductance | 1.1 nH |
| Tolerance | ±0.2nH |
| Current Rating (Amps) | 750 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 100mOhm Max |
| Q @ Freq | 14 @ 500MHz |
| Frequency - Self Resonant | 17GHz |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 500 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0201 (0603 Metric) |
| Supplier Device Package | 0201 (0603 Metric) |
| Size / Dimension | 0.024" L x 0.012" W (0.60mm x 0.30mm) |
| Height - Seated (Max) | 0.013" (0.33mm) |
| Base Product Number | LQP03TN |
| Product Attribute |  |
 |
 |
 |

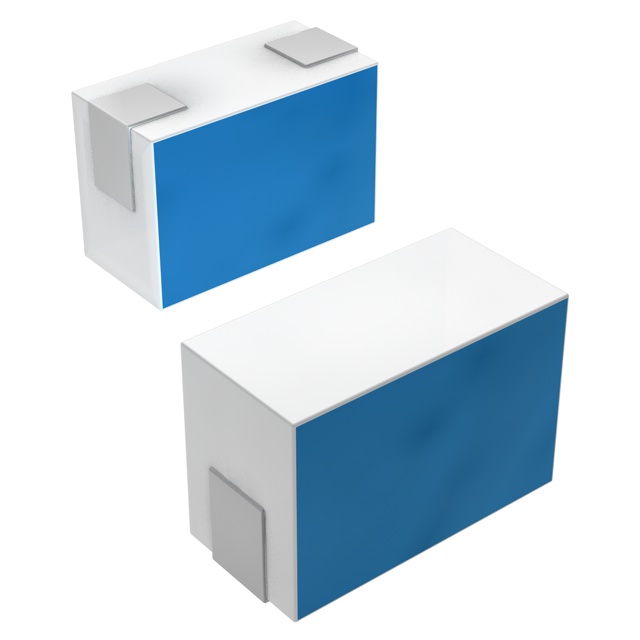

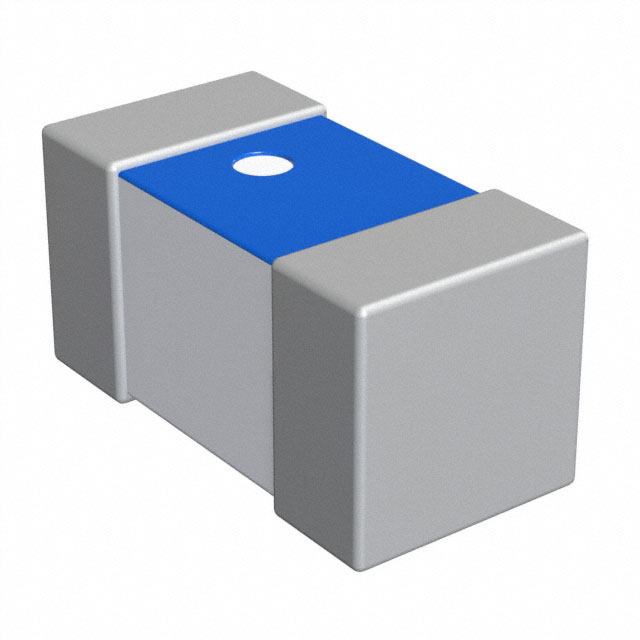

| Part Number | LQP03TN1N1CZ2D | LQP03TN10NH02D | LQP03TN10NHZ2D | LQP03TN10NJ02D |
| Manufacturer | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND | FIXED IND 10NH 250MA 700MOHM SMD | FIXED IND 10NH 250MA 700MOHM SMD | FIXED IND 10NH 250MA 700MOHM SMD |
| Series | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
