LQW04AN22NH00D

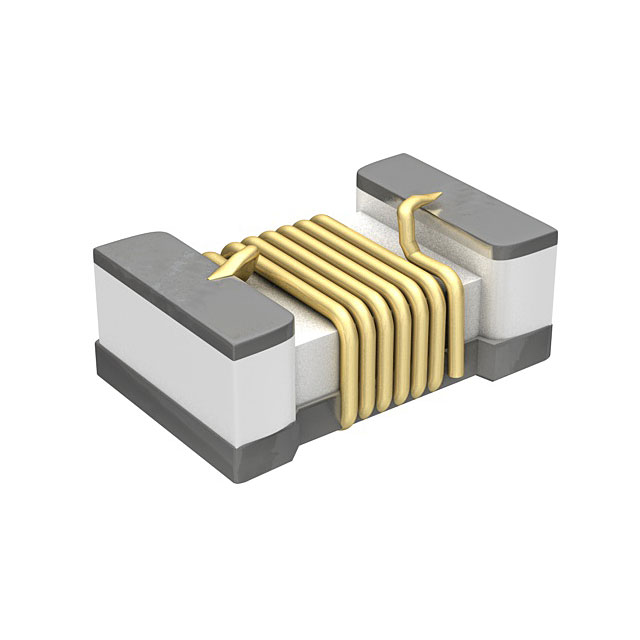

lmages are for reference only.LQW04AN22NH00D
FIXED IND 22NH 200MA 630MOHM SMD
Datasheet0302 (0804 Metric)
89,725 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
22 nH Unshielded Wirewound Inductor 200 mA 630mOhm Max 0302 (0804 Metric)
LQW04AN22NH00D
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Murata Electronics |
| Series | LQW04 |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Wirewound |
| Material - Core | - |
| Inductance | 22 nH |
| Tolerance | ±3% |
| Current Rating (Amps) | 200 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 630mOhm Max |
| Q @ Freq | 15 @ 250MHz |
| Frequency - Self Resonant | 5GHz |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0302 (0804 Metric) |
| Supplier Device Package | 03015 (0804 Metric) |
| Size / Dimension | 0.031" L x 0.016" W (0.80mm x 0.40mm) |
| Height - Seated (Max) | 0.018" (0.45mm) |
| Base Product Number | LQW04AN |
| Product Attribute |  |
 |
 |
 |
| Part Number | LQW04AN20NH00D | LQW04AN20NJ00D | LQW04AN22NJ00D | LQW04AN23NH00D |
| Manufacturer | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 20NH 210MA 560MOHM SMD | FIXED IND 20NH 210MA 560MOHM SMD | FIXED IND 22NH 200MA 630MOHM SMD | FIXED IND 23NH 160MA 950MOHM SMD |
| Series | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) |
