LQW15AN3N7C80D

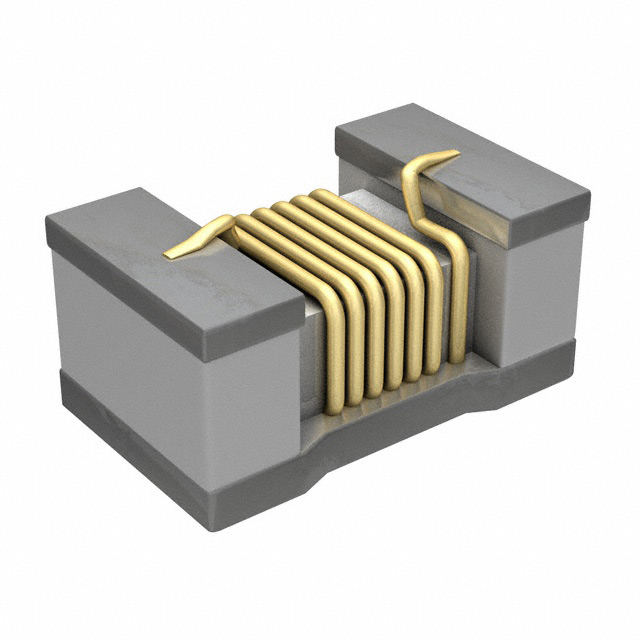

lmages are for reference only.LQW15AN3N7C80D
FIXED IND 3.7NH 1.95A 0.03OHM SM
Datasheet0402 (1005 Metric)
73,330 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
3.7 nH Unshielded Drum Core, Wirewound Inductor 1.95 A 30mOhm Max 0402 (1005 Metric)
LQW15AN3N7C80D
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Murata Electronics |
| Series | LQW15 |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Drum Core, Wirewound |
| Material - Core | Non-Magnetic |
| Inductance | 3.7 nH |
| Tolerance | ±0.2nH |
| Current Rating (Amps) | 1.95 A |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 30mOhm Max |
| Q @ Freq | 35 @ 250MHz |
| Frequency - Self Resonant | 10GHz |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0402 (1005 Metric) |
| Supplier Device Package | - |
| Size / Dimension | 0.039" L x 0.024" W (1.00mm x 0.60mm) |
| Height - Seated (Max) | 0.024" (0.60mm) |
| Base Product Number | LQW15AN |
| Product Attribute | |
 |
 |
 |
| Part Number | LQW15AN3N7C80D | LQW15AN3N7C8ZD | LQW15AN30NG00D | LQW15AN30NG0ZD |
| Manufacturer | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 3.7NH 1.95A 0.03OHM SM | FIXED IND 3.7NH 1.95A 0.03OHM SM | FIXED IND 30NH 270MA 0.58OHM SMD | FIXED IND 30NH 270MA 0.58OHM SMD |
| Series | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
