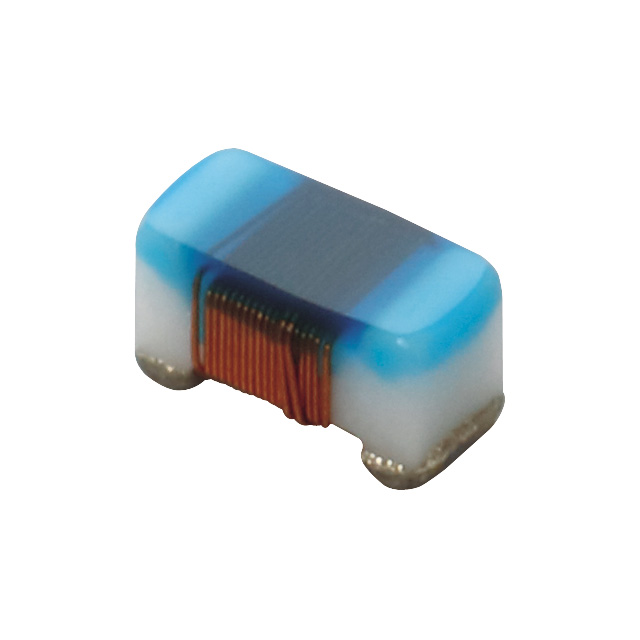

LQW15AN5N8B00D
lmages are for reference only.LQW15AN5N8B00D
FIXED IND 5.8NH 700MA 0.09OHM SM
Datasheet0402 (1005 Metric)
86,790 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
5.8 nH Unshielded Drum Core, Wirewound Inductor 700 mA 90mOhm Max 0402 (1005 Metric)
LQW15AN5N8B00D
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Murata Electronics |
| Series | LQW15 |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Drum Core, Wirewound |
| Material - Core | Non-Magnetic |
| Inductance | 5.8 nH |
| Tolerance | ±0.1nH |
| Current Rating (Amps) | 700 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 90mOhm Max |
| Q @ Freq | 25 @ 250MHz |
| Frequency - Self Resonant | 8GHz |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0402 (1005 Metric) |
| Supplier Device Package | - |
| Size / Dimension | 0.039" L x 0.024" W (1.00mm x 0.60mm) |
| Height - Seated (Max) | 0.024" (0.60mm) |
| Base Product Number | LQW15AN |
| Product Attribute |  |
 |
 |
 |

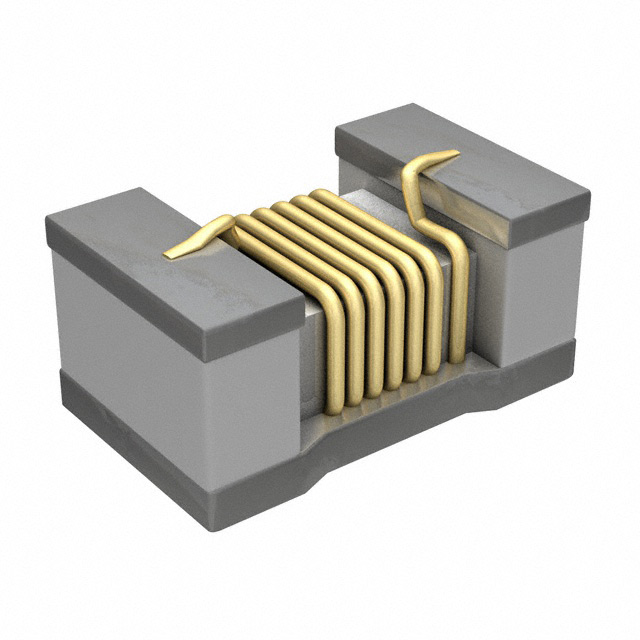

| Part Number | LQW15AN5N8B0ZD | LQW15AN5N8B80D | LQW15AN5N8B8ZD | LQW15AN51NG00D |
| Manufacturer | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 5.8NH 700MA 0.09OHM SM | FIXED IND 5.8NH 1.77A 0.04OHM SM | FIXED IND 5.8NH 1.77A 0.04OHM SM | FIXED IND 51NH 210MA 1.08OHM SMD |
| Series | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
