LRC0402CS3N9GV001T
lmages are for reference only.LRC0402CS3N9GV001T
FIXED IND 3.9NH 300MA 220MOHM SM
Datasheet0402 (1005 Metric)
37,429 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
3.9 nH Unshielded Multilayer Inductor 300 mA 220mOhm Max 0402 (1005 Metric)
LRC0402CS3N9GV001T
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Johanson Technology Inc. |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Multilayer |
| Material - Core | Ceramic |
| Inductance | 3.9 nH |
| Tolerance | ±0.3nH |
| Current Rating (Amps) | 300 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 220mOhm Max |
| Q @ Freq | 8 @ 100MHz |
| Frequency - Self Resonant | 7GHz |
| Ratings | - |
| Operating Temperature | -55°C ~ 100°C |
| Inductance Frequency - Test | 100 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0402 (1005 Metric) |
| Supplier Device Package | 0402 (1005 Metric) |
| Size / Dimension | 0.039" L x 0.020" W (1.00mm x 0.50mm) |
| Height - Seated (Max) | 0.024" (0.60mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |

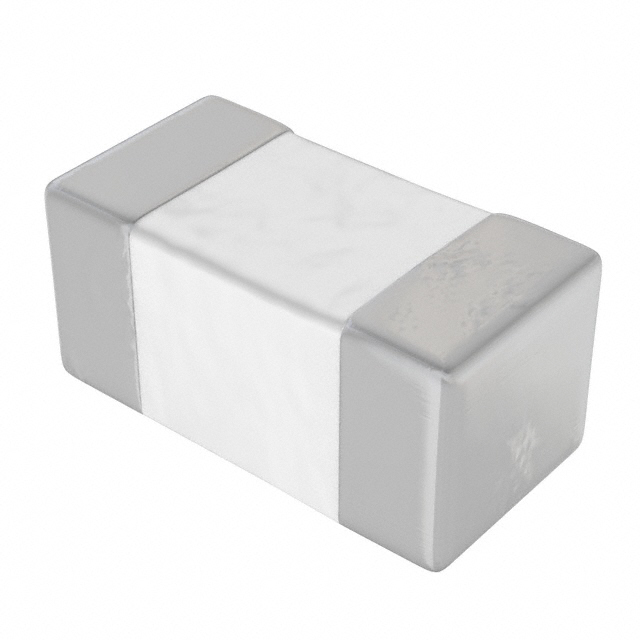

| Part Number | LRC0402CJ10NGV001T | LRC0402CJ12NGV001T | LRC0402CJ13NGV001T | LRC0402CJ15NGV001T |
| Manufacturer | Johanson Technology Inc. | Johanson Technology Inc. | Johanson Technology Inc. | Johanson Technology Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 10NH 250MA 450MOHM SMD | FIXED IND 12NH 250MA 500MOHM SMD | FIXED IND 13NH 250MA 550MOHM SMD | FIXED IND 15NH 250MA 600MOHM SMD |
| Series | Johanson Technology Inc. | Johanson Technology Inc. | Johanson Technology Inc. | Johanson Technology Inc. |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
