LRTBGRTG-VTVW-1+AXBS-56+TTTV-6-LB-ACU
lmages are for reference only.LRTBGRTG-VTVW-1+AXBS-56+TTTV-6-LB-ACU
LED RGB DIFFUSED 6PLCC SMD
Datasheet6-SMD, Flat Leads
52,715 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Red, Green, Blue (RGB) 625nm Red, 528nm Green, 470nm Blue LED Indication - Discrete 2.05V Red, 3.2V Green, 3.2V Blue 6-SMD, Flat Leads
LRTBGRTG-VTVW-1+AXBS-56+TTTV-6-LB-ACU
| Category | Optoelectronics - LED Indication Discrete - |
| Manufacturer | ams-OSRAM USA INC. |
| Series | DISPLIX® Blackprint |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Color | Red, Green, Blue (RGB) |
| Configuration | Independent |
| Lens Color | - |
| Lens Transparency | Diffused |
| Millicandela Rating | 968.5mcd Red, 1929mcd Green, 373.5mcd Blue |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 3.88mm x 3.32mm |
| Voltage - Forward (Vf) (Typ) | 2.05V Red, 3.2V Green, 3.2V Blue |
| Current - Test | 20mA Red, 20mA Green, 20mA Blue |
| Viewing Angle | 120° |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | 625nm Red, 528nm Green, 470nm Blue |
| Wavelength - Peak | 632nm Red, 523nm Green, 465nm Blue |
| Features | - |
| Package / Case | 6-SMD, Flat Leads |
| Supplier Device Package | 6-PLCC |
| Size / Dimension | 4.50mm L x 4.10mm W |
| Height (Max) | 2.20mm |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
| Product Attribute | |
|
 |
 |

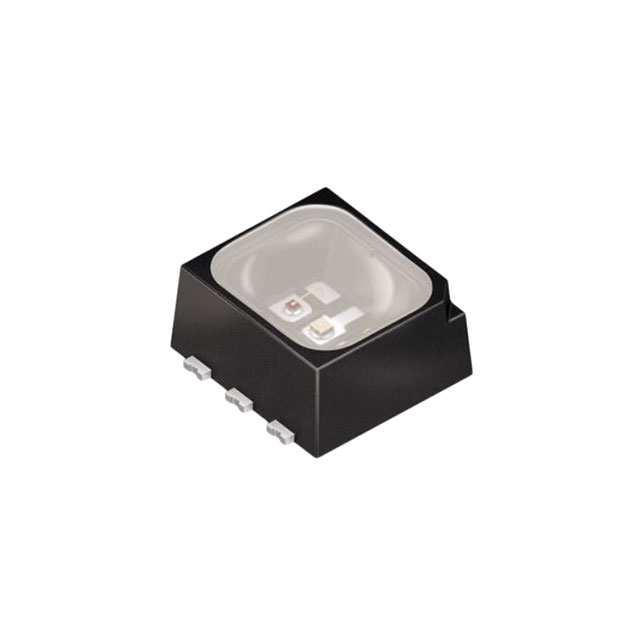

| Part Number | LRTBGRTG-VTVW-1+AXBS-56+TTTV-6-20-L-B-CK | LRTBGRTG-UJVJ-1+ANBO-29+TDTJ-49-20 | LRTBGRTG-UJVJ-1+ANBO-29+TDTJ-49-20-L-ZC | LRTBGRTG-UZVY-1+AVBV-29+TTTY-49-20-L-ZB |
| Manufacturer | ams-OSRAM USA INC. | ams-OSRAM USA INC. | ams-OSRAM USA INC. | ams-OSRAM USA INC. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | LED RGB DIFFUSED 6PLCC SMD | LED RGB DIFFUSED 6PLCC SMD | LED RGB DIFFUSED 6PLCC SMD | LED RGB DIFFUSED 6PLCC SMD |
| Series | ams-OSRAM USA INC. | ams-OSRAM USA INC. | ams-OSRAM USA INC. | ams-OSRAM USA INC. |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Bulk | Tape & Reel (TR)-->Cut Tape (CT) |
