LRTBR98G-R5T-1+S7T7-35+PQ-25-20-R18-ZC

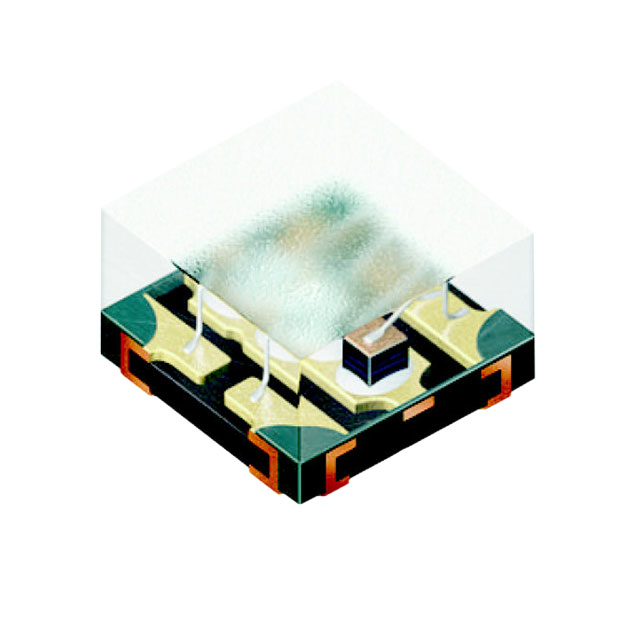

lmages are for reference only.LRTBR98G-R5T-1+S7T7-35+PQ-25-20-R18-ZC
LED RGB DIFFUSED SMD CHIPLED SMD
Datasheet6-SMD, No Lead
21,291 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Red, Green, Blue (RGB) 621nm Red, 528nm Green, 470nm Blue LED Indication - Discrete 2.05V Red, 3.2V Green, 3.2V Blue 6-SMD, No Lead
LRTBR98G-R5T-1+S7T7-35+PQ-25-20-R18-ZC
| Category | Optoelectronics - LED Indication Discrete - |
| Manufacturer | ams-OSRAM USA INC. |
| Series | Multi CHIPLED |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Color | Red, Green, Blue (RGB) |
| Configuration | Independent |
| Lens Color | - |
| Lens Transparency | Diffused |
| Millicandela Rating | 288mcd Red, 392mcd Green, 79mcd Blue |
| Lens Style | Square with Flat Top |
| Lens Size | 1.60mm |
| Voltage - Forward (Vf) (Typ) | 2.05V Red, 3.2V Green, 3.2V Blue |
| Current - Test | 20mA Red, 20mA Green, 20mA Blue |
| Viewing Angle | 120° |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | 621nm Red, 528nm Green, 470nm Blue |
| Wavelength - Peak | 632nm Red, 523nm Green, 465nm Blue |
| Features | - |
| Package / Case | 6-SMD, No Lead |
| Supplier Device Package | SMT CHIPLED |
| Size / Dimension | 1.60mm L x 1.60mm W |
| Height (Max) | 1.00mm |
| Base Product Number | LRTBR98 |
| Grade | - |
| Qualification | - |
| Product Attribute | |
|
|
 |
| Part Number | LRTBR98G-R5T-1+S7T7-35+PQ-25-20-R18-ZB | LRTBR98G-R7S-1+S9T5-34+PP7-23-20-R18-XX | LRTBR98G-R9T-1+S7T7-35+PQ-25-20-S-ZO | LR A67F-U2AB-1-1-30-R33-Z |
| Manufacturer | ams-OSRAM USA INC. | ams-OSRAM USA INC. | ams-OSRAM USA INC. | ams-OSRAM USA INC. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | LED RGB DIFFUSED SMD CHIPLED SMD | LED RGB SMD CHIPLED SMD | LED RGB SMD CHIPLED SMD | LED RED CLEAR SMD R/A |
| Series | ams-OSRAM USA INC. | ams-OSRAM USA INC. | ams-OSRAM USA INC. | ams-OSRAM USA INC. |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Bulk | Tape & Reel (TR)-->Cut Tape (CT) |
