LRW0402WJ40NGG001T
lmages are for reference only.LRW0402WJ40NGG001T
FIXED IND 40NH 320MA 438MOHM SMD
Datasheet0402 (1005 Metric)
87,948 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services

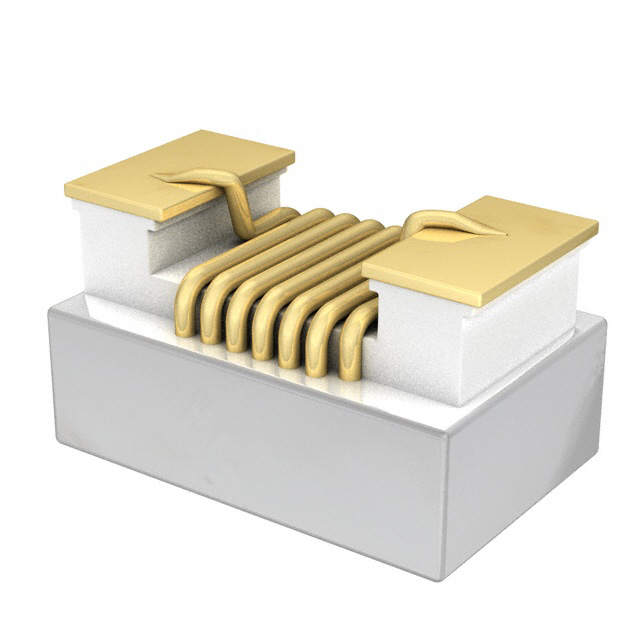

40 nH Unshielded Drum Core, Wirewound Inductor 320 mA 438mOhm Max 0402 (1005 Metric)
LRW0402WJ40NGG001T
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Johanson Technology Inc. |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Drum Core, Wirewound |
| Material - Core | Ceramic |
| Inductance | 40 nH |
| Tolerance | ±5% |
| Current Rating (Amps) | 320 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 438mOhm Max |
| Q @ Freq | 51 @ 900MHz |
| Frequency - Self Resonant | 2.3GHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 250 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0402 (1005 Metric) |
| Supplier Device Package | 0402 (1005 Metric) |
| Size / Dimension | 0.039" L x 0.022" W (1.00mm x 0.55mm) |
| Height - Seated (Max) | 0.024" (0.60mm) |
| Base Product Number | - |
| Product Attribute | |
 |
 |
 |
| Part Number | LRW0402WJ40NGG001T | LRW0402WC1N0GG001T | LRW0402WC1N8GG001T | LRW0402WC2N0GG001T |
| Manufacturer | Johanson Technology Inc. | Johanson Technology Inc. | Johanson Technology Inc. | Johanson Technology Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 40NH 320MA 438MOHM SMD | FIXED IND 1NH 1.3A 45 MOHM SMD | FIXED IND 1.8NH 1.04A 70MOHM SMD | FIXED IND 2NH 1.04A 70 MOHM SMD |
| Series | Johanson Technology Inc. | Johanson Technology Inc. | Johanson Technology Inc. | Johanson Technology Inc. |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
