LRW0603WKR47GG001E

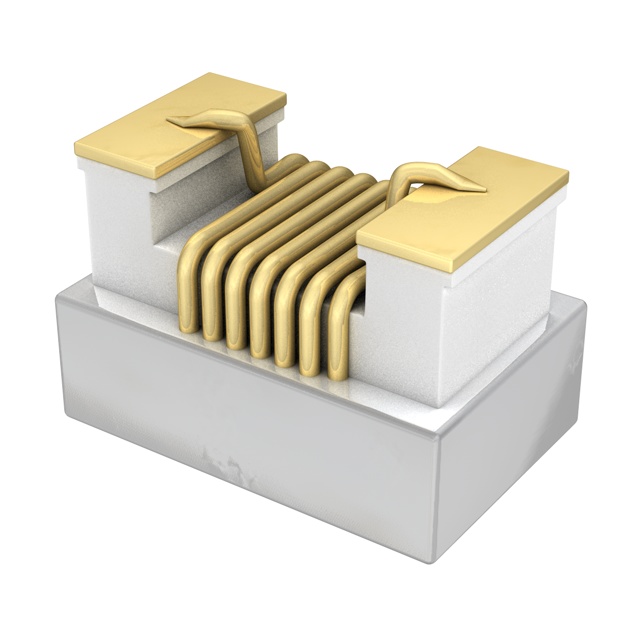

lmages are for reference only.LRW0603WKR47GG001E
FIXED IND 470NH 100MA 5.6OHM SMD
Datasheet0603 (1608 Metric)
72,312 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
470 nH Unshielded Drum Core, Wirewound Inductor 100 mA 5.6Ohm Max 0603 (1608 Metric)
LRW0603WKR47GG001E
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Johanson Technology Inc. |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Drum Core, Wirewound |
| Material - Core | Ceramic |
| Inductance | 470 nH |
| Tolerance | ±10% |
| Current Rating (Amps) | 100 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 5.6Ohm Max |
| Q @ Freq | 23 @ 100MHz |
| Frequency - Self Resonant | 700MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 250 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0603 (1608 Metric) |
| Supplier Device Package | 0603 (1608 Metric) |
| Size / Dimension | 0.063" L x 0.041" W (1.60mm x 1.05mm) |
| Height - Seated (Max) | 0.049" (1.25mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | LRW0603WC1N6GG001E | LRW0603WC1N8GG001E | LRW0603WC2N0GG001E | LRW0603WC3N9GG001E |
| Manufacturer | Johanson Technology Inc. | Johanson Technology Inc. | Johanson Technology Inc. | Johanson Technology Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 1.6NH 700MA 80MOHM SMD | FIXED IND 1.8NH 700MA 80MOHM SMD | FIXED IND 2NH 700MA 80 MOHM SMD | FIXED IND 3.9NH 700MA 80MOHM SMD |
| Series | Johanson Technology Inc. | Johanson Technology Inc. | Johanson Technology Inc. | Johanson Technology Inc. |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) |
