LRW0805FJ3R9GV001E

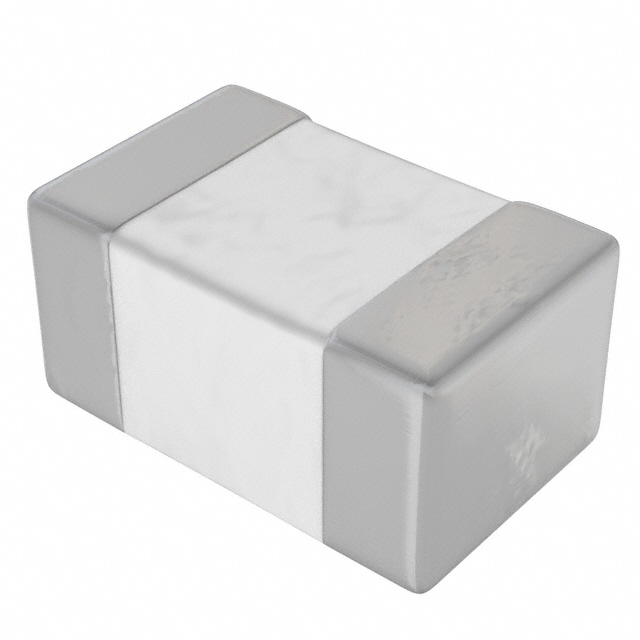

lmages are for reference only.LRW0805FJ3R9GV001E
FIXED IND 3.9UH 200MA 2.5OHM SMD
Datasheet0805 (2012 Metric)
59,985 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
3.9 µH Unshielded Drum Core, Wirewound Inductor 200 mA 2.5Ohm Max 0805 (2012 Metric)
LRW0805FJ3R9GV001E
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Johanson Technology Inc. |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 3.9 µH |
| Tolerance | ±5% |
| Current Rating (Amps) | 200 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 2.5Ohm Max |
| Q @ Freq | 15 @ 8MHz |
| Frequency - Self Resonant | 60MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 85°C |
| Inductance Frequency - Test | 8 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0805 (2012 Metric) |
| Supplier Device Package | 0805 (2012 Metric) |
| Size / Dimension | 0.079" L x 0.049" W (2.00mm x 1.25mm) |
| Height - Seated (Max) | 0.055" (1.40mm) |
| Base Product Number | - |
| Product Attribute | |
 |
 |
 |
| Part Number | LRW0805FJ3R9GV001E | LRW0805FJ10RGV001E | LRW0805FJ1R0GV001E | LRW0805FJ1R2GV001E |
| Manufacturer | Johanson Technology Inc. | Johanson Technology Inc. | Johanson Technology Inc. | Johanson Technology Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 3.9UH 200MA 2.5OHM SMD | FIXED IND 10UH 80MA SMD | FIXED IND 1UH 180MA 2.13 OHM SMD | FIXED IND 1.2UH 150MA 2.38OHM SM |
| Series | Johanson Technology Inc. | Johanson Technology Inc. | Johanson Technology Inc. | Johanson Technology Inc. |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
