LSHD-7501
lmages are for reference only.LSHD-7501
DISPLAY 7-SEG 0.3" SGL RED 10DIP
Datasheet10-DIP (0.200", 5.08mm)
42,991 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Display Modules - LED Character and Numeric Red 7-Segment 1 Character Common Anode 2.1V 20mA 0.500" H x 0.300" W x 0.240" D (12.70mm x 7.62mm x 6.09mm) 10-DIP (0.200", 5.08mm)

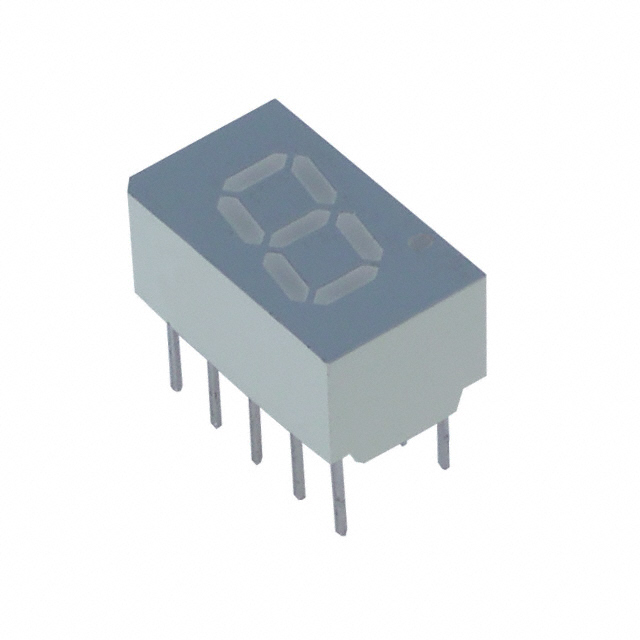

LSHD-7501
| Category | Optoelectronics - LED Character and Numeric - |
| Manufacturer | Lite-On Inc. |
| Series | - |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Number of Characters | 1 |
| Size / Dimension | 0.500" H x 0.300" W x 0.240" D (12.70mm x 7.62mm x 6.09mm) |
| Digit/Alpha Size | 0.30" (7.62mm) |
| Display Type | 7-Segment |
| Common Pin | Common Anode |
| Color | Red |
| Voltage - Forward (Vf) (Typ) | 2.1V |
| Current - Test | 20mA |
| Millicandela Rating | 12mcd |
| Wavelength - Peak | 632nm |
| Power Dissipation (Max) | 70mW |
| Package / Case | 10-DIP (0.200", 5.08mm) |
| Base Product Number | LSHD-75 |
| Display Format | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | LSHD-7503 | LSHD-7801 | LSHD-7803 | LSHD-5503 |
| Manufacturer | Lite-On Inc. | Lite-On Inc. | Lite-On Inc. | Lite-On Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |

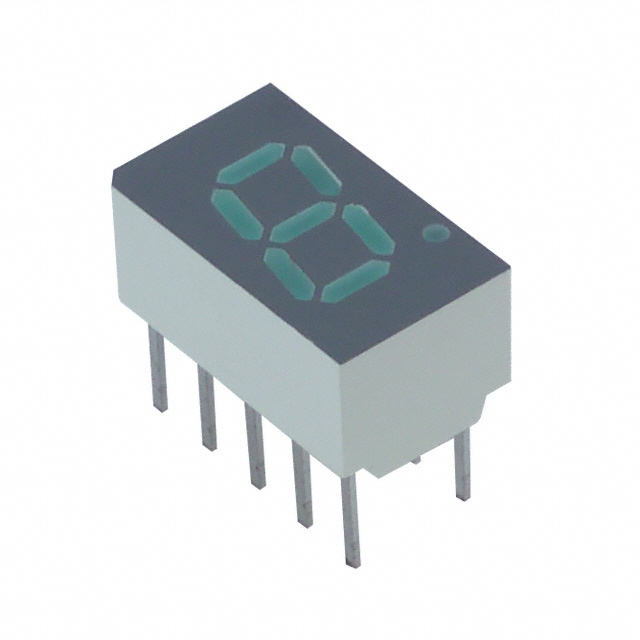

| Description | DISPLAY 7-SEG 0.3" SGL RED 10DIP | DISPLAY 7SEG 0.3" SGL GRN 10DIP | DISPLAY 7SEG 0.3" SGL GRN 10DIP | DISPLAY 7SEG 0.56" SGL RED 10DIP |
| Series | - | - | - | - |
| Packaging | Tube | Tube | Tube | Tube |
