LSIC2SD065D10A
lmages are for reference only.LSIC2SD065D10A
DIODE SIL CARBIDE 650V 27A TO263
DatasheetTO-263-3, D2PAK (2 Leads + Tab), TO-263AB
49,757 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Diode 650 V 27A Surface Mount TO-263 (D2PAK)
LSIC2SD065D10A
| Category | Discrete Semiconductor Products - Diodes - Rectifiers |
| Manufacturer | Littelfuse Inc. |
| Series | GEN2 |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Technology | SiC (Silicon Carbide) Schottky |
| Voltage - DC Reverse (Vr) (Max) | 650 V |
| Current - Average Rectified (Io) | 27A |
| Voltage - Forward (Vf) (Max) @ If | 1.8 V @ 10 A |
| Speed | No Recovery Time > 500mA (Io) |
| Reverse Recovery Time (trr) | 0 ns |
| Current - Reverse Leakage @ Vr | 50 µA @ 650 V |
| Capacitance @ Vr, F | 470pF @ 1V, 1MHz |
| Mounting Type | Surface Mount |
| Package / Case | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB |
| Supplier Device Package | TO-263 (D2PAK) |
| Operating Temperature - Junction | -55°C ~ 175°C |
| Base Product Number | - |
| Grade | Automotive |
| Qualification | AEC-Q101 |
| Product Attribute |  |
|
 |
|
| Part Number | LSIC2SD065D06A | LSIC2SD065D08A | LSIC2SD065D16A | LSIC2SD065D20A |
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |

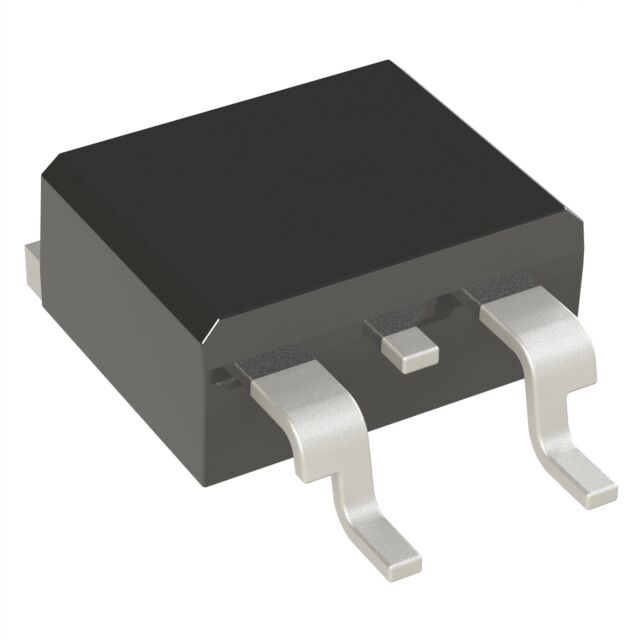

| Description | DIODE SIL CARB 650V 18.5A TO263 | DIODE SIL CARB 650V 8A TO220AC | DIODE SIL CARBIDE 650V 38A TO263 | DIODE SIL CARB 650V 20A TO220AC |
| Series | GEN2 | Gen2 | GEN2 | Gen2 |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
