LSM0603472V
lmages are for reference only.LSM0603472V
LED YELLOW CLEAR CHIP SMD
Datasheet0603 (1608 Metric)
35,637 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Yellow 590nm LED Indication - Discrete 2V 0603 (1608 Metric)
LSM0603472V
| Category | Optoelectronics - LED Indication Discrete - |
| Manufacturer | Visual Communications Company - VCC |
| Series | LSM0603 |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Color | Yellow |
| Configuration | Standard |
| Lens Color | Colorless |
| Lens Transparency | Clear |
| Millicandela Rating | 110mcd |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 1.20mm x 0.80mm |
| Voltage - Forward (Vf) (Typ) | 2V |
| Current - Test | 20mA |
| Viewing Angle | 120° |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | 590nm |
| Wavelength - Peak | 590nm |
| Features | - |
| Package / Case | 0603 (1608 Metric) |
| Supplier Device Package | Chip LED |
| Size / Dimension | 1.60mm L x 0.80mm W |
| Height (Max) | 0.65mm |
| Base Product Number | LSM0603472 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

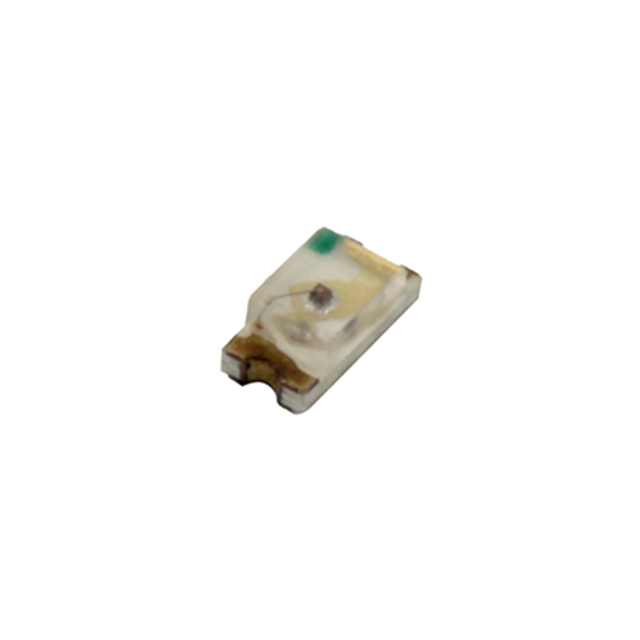

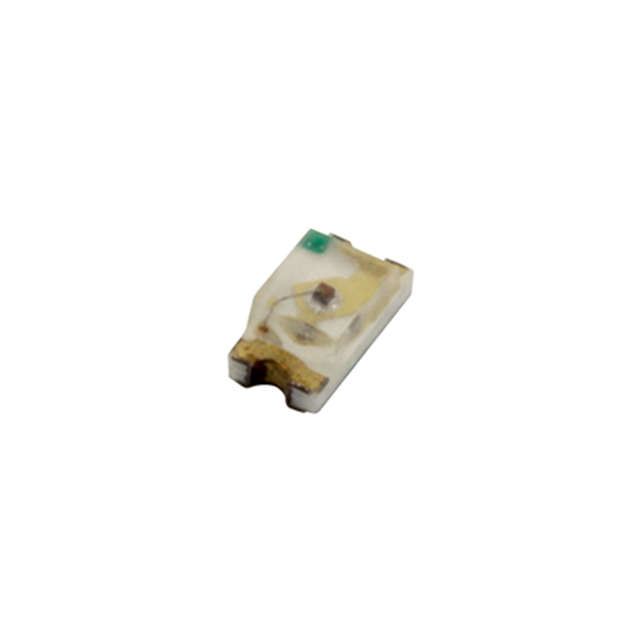

| Part Number | LSM0603412V | LSM0603443V | LSM0603453V | LSM0603463V |
| Manufacturer | Visual Communications Company - VCC | Visual Communications Company - VCC | Visual Communications Company - VCC | Visual Communications Company - VCC |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | LED RED CLEAR CHIP SMD | LED WHITE CLEAR CHIP SMD | LED GREEN CLEAR CHIP 0603 SMD | LED BLUE CLEAR CHIP 0603 SMD |
| Series | Visual Communications Company - VCC | Visual Communications Company - VCC | Visual Communications Company - VCC | Visual Communications Company - VCC |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
