LSQPB160807T1R5M
lmages are for reference only.LSQPB160807T1R5M
FIXED IND 1.5UH 590MA 364MOHM SM
Datasheet0603 (1608 Metric)
92,187 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
1.5 µH Unshielded Wirewound Inductor 590 mA 364mOhm Max 0603 (1608 Metric)
LSQPB160807T1R5M
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Taiyo Yuden |
| Series | LSQP |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Wirewound |
| Material - Core | Ferrite |
| Inductance | 1.5 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 590 mA |
| Current - Saturation (Isat) | 440mA |
| Shielding | Unshielded |
| DC Resistance (DCR) | 364mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 600MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 105°C |
| Inductance Frequency - Test | 1 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0603 (1608 Metric) |
| Supplier Device Package | 0603 |
| Size / Dimension | 0.063" L x 0.031" W (1.60mm x 0.80mm) |
| Height - Seated (Max) | 0.028" (0.70mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |

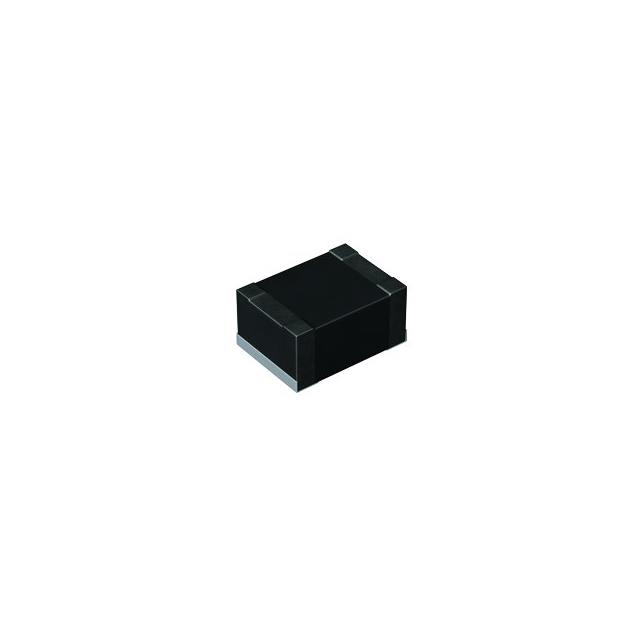

| Part Number | LSQPB160807T100M | LSQPB160807T150M | LSQPB160807T1R0M | LSQPB160807T2R2M |
| Manufacturer | Taiyo Yuden | Taiyo Yuden | Taiyo Yuden | Taiyo Yuden |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 10UH 220MA 2.6 OHM SMD | FIXED IND 15UH 200MA 3.328OHM SM | FIXED IND 1UH 650MA 299 MOHM SMD | FIXED IND 2.2UH 500MA 520MOHM SM |
| Series | Taiyo Yuden | Taiyo Yuden | Taiyo Yuden | Taiyo Yuden |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
