LSXPD3030MKT3R3M

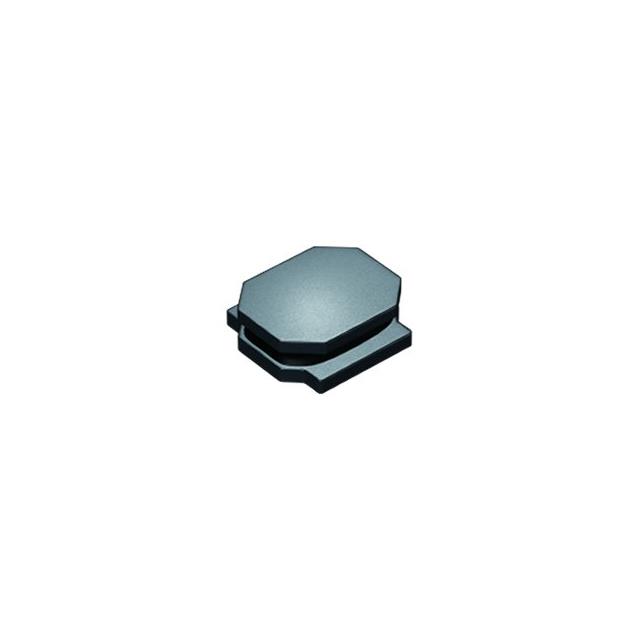

lmages are for reference only.LSXPD3030MKT3R3M
FIXED IND 3.3UH 1A 180 MOHM SMD
Datasheet1212 (3030 Metric)
87,304 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
3.3 µH Unshielded Wirewound Inductor 1 A 150mOhm 1212 (3030 Metric)
LSXPD3030MKT3R3M
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Taiyo Yuden |
| Series | LSXP |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Wirewound |
| Material - Core | Ferrite |
| Inductance | 3.3 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 1 A |
| Current - Saturation (Isat) | 1.6A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 150mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | 55MHz |
| Ratings | - |
| Operating Temperature | -25°C ~ 120°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 1212 (3030 Metric) |
| Supplier Device Package | 1212 |
| Size / Dimension | 0.118" L x 0.118" W (3.00mm x 3.00mm) |
| Height - Seated (Max) | 0.047" (1.20mm) |
| Base Product Number | - |
| Product Attribute |  |
|
 |
 |
| Part Number | LSXPD3030MKT100M | LSXPD3030MKT100M | LSXPD3030MKT1R0N | LSXPD3030MKT1R5N |
| Manufacturer | Taiyo Yuden | Taiyo Yuden | Taiyo Yuden | Taiyo Yuden |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 10UH 640MA 564MOHM SMD | FIXED IND 10UH 640MA 564MOHM SMD | FIXED IND 1UH 1.6A 78 MOHM SMD | FIXED IND 1.5UH 1.61A 90MOHM SMD |
| Series | Taiyo Yuden | Taiyo Yuden | Taiyo Yuden | Taiyo Yuden |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) |
