LT1176CSW-5#PBF

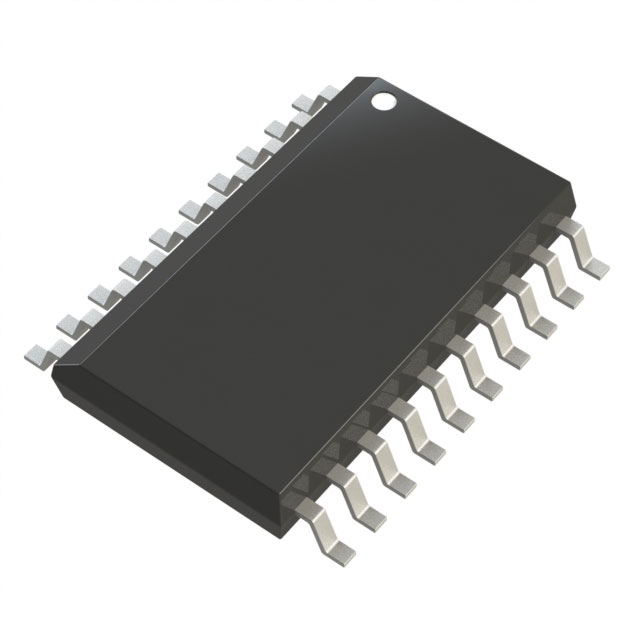

lmages are for reference only.LT1176CSW-5#PBF
IC REG BUCK FLYBACK 5V 1.2A 20SO
Datasheet20-SOIC (0.295", 7.50mm Width)
59,086 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Buck, Flyback Switching Regulator IC Positive or Negative Fixed 5V 1 Output 1.2A (Switch) 20-SOIC (0.295", 7.50mm Width)
LT1176CSW-5#PBF
| Category | Integrated Circuits (ICs) - Power Management PMIC - Voltage Regulators DC DC Switching Regulators |
| Manufacturer | Analog Devices Inc. |
| Series | - |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Function | Step-Up, Step-Down, Step-Up/Step-Down |
| Output Configuration | Positive or Negative |
| Topology | Buck, Flyback |
| Output Type | Fixed |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 8V |
| Voltage - Input (Max) | 35V |
| Voltage - Output (Min/Fixed) | 5V |
| Voltage - Output (Max) | - |
| Current - Output | 1.2A (Switch) |
| Frequency - Switching | 100kHz |
| Synchronous Rectifier | No |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 20-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 20-SO |
| Base Product Number | LT1176 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | LT1176CSW#PBF | LT1176CSW#TRPBF | LT1176CSW-5#TRPBF | LT1170CK |
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | IC REG BCK FLYBACK ADJ 1.2A 20SO | IC REG BCK FLYBACK ADJ 1.2A 20SO | IC REG BUCK FLYBACK 5V 1.2A 20SO | IC SW-REG HI-EFF 5A TO3 |
| Series | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Packaging | Tube | Tape & Reel (TR) | Tape & Reel (TR) | Tube |
