LT3033EUDC#PBF
lmages are for reference only.LT3033EUDC#PBF
IC REG LINEAR POS ADJ 3A 20QFN
Datasheet20-WFQFN Exposed Pad
42,280 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Linear Voltage Regulator IC Positive Adjustable 1 Output 3A 20-QFN (3x4)
LT3033EUDC#PBF
| Category | Integrated Circuits (ICs) - Power Management PMIC - Voltage Regulators Linear-Low Drop Out LDO Regulators |
| Manufacturer | Analog Devices Inc. |
| Series | - |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 10V |
| Voltage - Output (Min/Fixed) | 0.2V |
| Voltage - Output (Max) | 9.7V |
| Voltage Dropout (Max) | 0.24V @ 3A |
| Current - Output | 3A |
| Current - Quiescent (Iq) | 3.5 mA |
| PSRR | 60dB ~ 52dB (120Hz ~ 1MHz) |
| Control Features | Enable, Power Good |
| Protection Features | Over Current, Over Temperature, Reverse Polarity |
| Operating Temperature | -40°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 20-WFQFN Exposed Pad |
| Supplier Device Package | 20-QFN (3x4) |
| Base Product Number | LT3033 |
| Current - Supply (Max) | 60 mA |
| Product Attribute |  |
 |
 |
 |

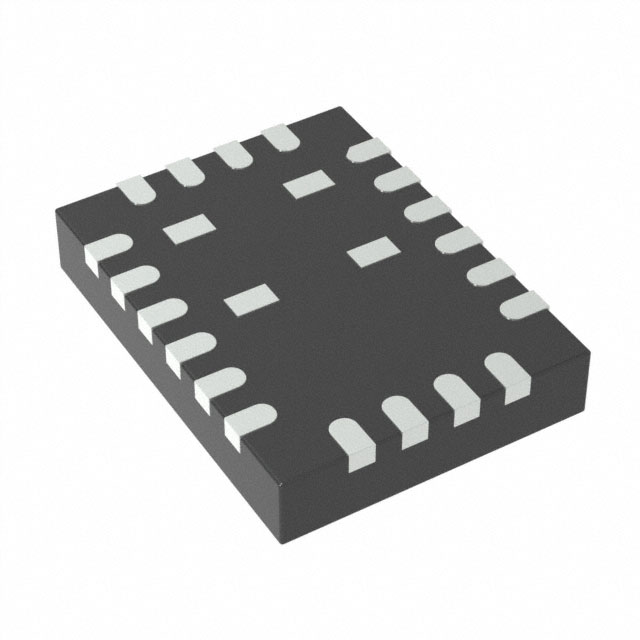

| Part Number | LT3033EUDC#TRPBF | LT3007ETS8#TRMPBF | LT3007ETS8#TRPBF | LT3007ETS8-1.2#TRMPBF |
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC REG LINEAR POS ADJ 3A 20QFN | IC REG LIN POS ADJ 20MA TSOT23-8 | IC REG LIN POS ADJ 20MA TSOT23-8 | IC REG LINEAR 1.2V 20MA TSOT23-8 |
| Series | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR) |
