LT8570EDD#PBF

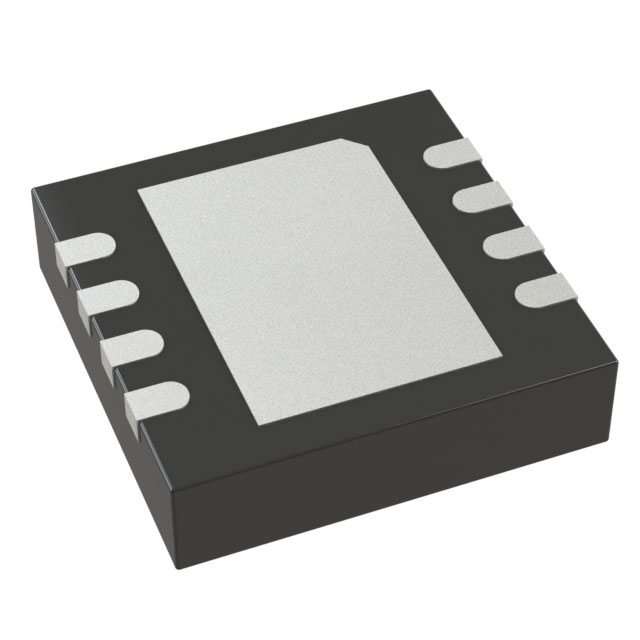

lmages are for reference only.LT8570EDD#PBF
IC REG BOOST CUK ADJ 750MA 8DFN
Datasheet8-WFDFN Exposed Pad
66,392 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Boost, Cuk, SEPIC Switching Regulator IC Positive or Negative Adjustable 0.003V, 1.204V 1 Output 750mA (Switch) 8-WFDFN Exposed Pad
LT8570EDD#PBF
| Category | Integrated Circuits (ICs) - Power Management PMIC - Voltage Regulators DC DC Switching Regulators |
| Manufacturer | Analog Devices Inc. |
| Series | - |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Function | Step-Up, Step-Up/Step-Down |
| Output Configuration | Positive or Negative |
| Topology | Boost, Cuk, SEPIC |
| Output Type | Adjustable |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 2.55V |
| Voltage - Input (Max) | 40V |
| Voltage - Output (Min/Fixed) | 0.003V, 1.204V |
| Voltage - Output (Max) | 65V (Switch) |
| Current - Output | 750mA (Switch) |
| Frequency - Switching | 200kHz ~ 1.5MHz |
| Synchronous Rectifier | No |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-WFDFN Exposed Pad |
| Supplier Device Package | 8-DFN (3x3) |
| Base Product Number | LT8570 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | LT8570EDD#TRPBF | LT8570EDD-1#PBF | LT8570EDD-1#TRPBF | LT8570EMS8E#PBF |
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC REG BOOST CUK ADJ 750MA 8DFN | IC REG BST CHARGE PUMP ADJ 8DFN | IC REG BST CHARGE PUMP ADJ 8DFN | IC REG BOOST CUK ADJ 750MA 8MSOP |
| Series | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tube | Tape & Reel (TR)-->Cut Tape (CT) | Tube |
