LTC3862IUH-2#PBF

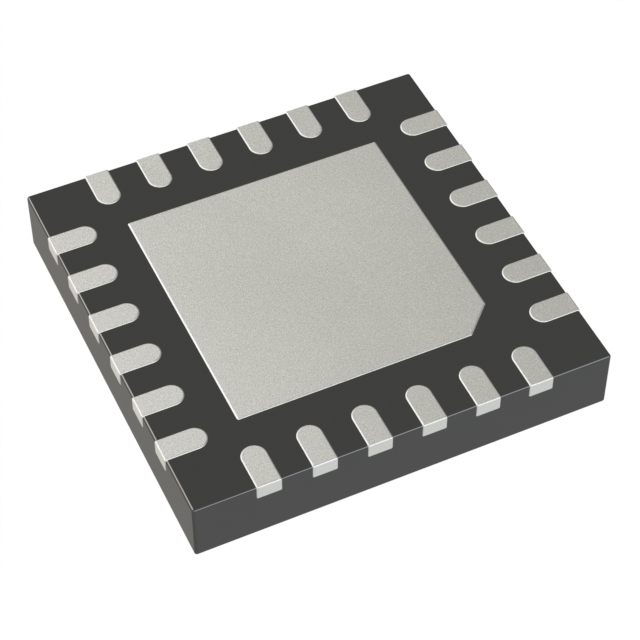

lmages are for reference only.LTC3862IUH-2#PBF
IC REG CTRLR BOOST/SEPIC 24QFN
Datasheet24-WQFN Exposed Pad
33,383 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Boost, SEPIC Regulator Positive Output Step-Up, Step-Up/Step-Down DC-DC Controller IC 24-QFN (5x5)
LTC3862IUH-2#PBF
| Category | Integrated Circuits (ICs) - Power Management PMIC - DC DC Switching Controllers |
| Manufacturer | Analog Devices Inc. |
| Series | - |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Output Type | Transistor Driver |
| Function | Step-Up, Step-Up/Step-Down |
| Output Configuration | Positive |
| Topology | Boost, SEPIC |
| Number of Outputs | 2 |
| Output Phases | 2 |
| Voltage - Supply (Vcc/Vdd) | 5.5V ~ 36V |
| Frequency - Switching | 75kHz ~ 500kHz |
| Duty Cycle (Max) | 96% |
| Synchronous Rectifier | No |
| Clock Sync | Yes |
| Serial Interfaces | - |
| Control Features | Enable, Frequency Control, Phase Control, Soft Start |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 24-WQFN Exposed Pad |
| Supplier Device Package | 24-QFN (5x5) |
| Base Product Number | LTC3862 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | LTC3862IUH-2#TRPBF | LTC3862IUH | LTC3862IUH#PBF | LTC3862IUH#TRPBF |
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | IC REG CTRLR BOOST/SEPIC 24QFN | IC POWER MANAGEMENT | IC REG CTRLR BOOST/SEPIC 24QFN | IC REG CTRLR BOOST/SEPIC 24QFN |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR) | Tube | Tube | Tape & Reel (TR) |
