LTC3870EUF-1#PBF

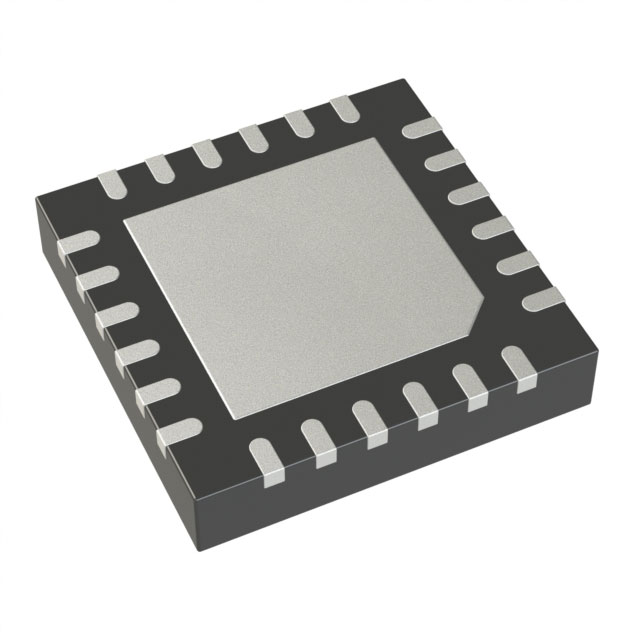

lmages are for reference only.LTC3870EUF-1#PBF
IC REG CTRLR BUCK 24QFN
Datasheet24-WFQFN Exposed Pad
58,893 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Buck Regulator Positive Output Step-Down DC-DC Controller IC 24-QFN (4x4)
LTC3870EUF-1#PBF
| Category | Integrated Circuits (ICs) - Power Management PMIC - DC DC Switching Controllers |
| Manufacturer | Analog Devices Inc. |
| Series | PolyPhase® |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Output Type | PWM Signal |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Number of Outputs | 2 |
| Output Phases | 2 |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 60V |
| Frequency - Switching | 500kHz |
| Duty Cycle (Max) | - |
| Synchronous Rectifier | No |
| Clock Sync | Yes |
| Serial Interfaces | - |
| Control Features | Current Limit, Enable, Frequency Control, Phase Control |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 24-WFQFN Exposed Pad |
| Supplier Device Package | 24-QFN (4x4) |
| Base Product Number | LTC3870 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | LTC3870EUF-1#TRPBF | LTC3870EUFD#PBF | LTC3870EUFD#TRPBF | LTC3870IUF-1#PBF |
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC REG CTRLR BUCK 24QFN | IC REG CTRLR BUCK 28QFN | IC REG CTRLR BUCK 28QFN | IC REG CTRLR BUCK 24QFN |
| Series | PolyPhase® | PolyPhase® | PolyPhase® | PolyPhase® |
| Packaging | Tape & Reel (TR) | Tube | Tape & Reel (TR) | Tube |
