LTC5588IPF-1#PBF
lmages are for reference only.LTC5588IPF-1#PBF
RF MODULATOR 200MHZ-6GHZ 24UFQFN
Datasheet24-UFQFN Exposed Pad
30,522 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
RF Modulator IC 200MHz ~ 6GHz 24-UFQFN Exposed Pad
LTC5588IPF-1#PBF
| Category | RF and Wireless - RF Modulators - |
| Manufacturer | Analog Devices Inc. |
| Series | - |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Function | Modulator/Mixer |
| LO Frequency | 200MHz ~ 6GHz |
| RF Frequency | 200MHz ~ 6GHz |
| P1dB | 12dBm |
| Noise Floor | -160dBm/Hz |
| Output Power | 4.2dBm |
| Current - Supply | 303 mA |
| Voltage - Supply | 3.15V ~ 3.45V |
| Test Frequency | 2.14GHz |
| Mounting Type | Surface Mount |
| Package / Case | 24-UFQFN Exposed Pad |
| Supplier Device Package | 24-UTQFN (4x4) |
| Base Product Number | LTC5588 |
| Product Attribute |  |
 |
 |
 |

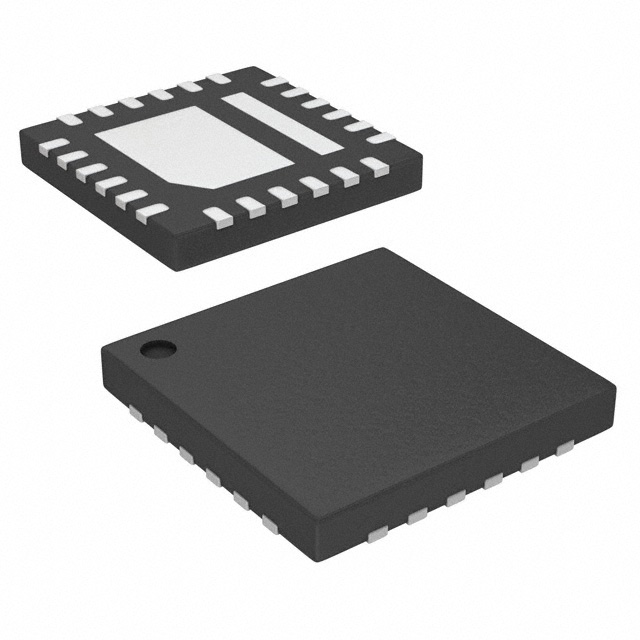

| Part Number | LTC5588IPF-1#TRPBF | LTC5589IUF#PBF | LTC5589IUF#TRPBF | LT5568EUF#TRPBF |
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | RF MODULATOR 200MHZ-6GHZ 24UFQFN | RF MODULATOR 700MHZ-6GHZ 24WFQFN | RF MODULATOR 700MHZ-6GHZ 24WFQFN | RF MODULATR 700MHZ-1.05GHZ 16QFN |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR) | Tube | Tape & Reel (TR)-->Cut Tape (CT)--> | Tape & Reel (TR) |
