LTD-6630E
lmages are for reference only.LTD-6630E
DISP 7SEG 0.56" 1.5DIG ORG 18DIP
Datasheet18-DIP (0.600", 15.24mm)
104,773 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Display Modules - LED Character and Numeric Orange-Red 7-Segment 1.5 Character Common Anode 2V 20mA 0.750" H x 0.984" W x 0.315" D (19.05mm x 25.00mm x 8.00mm) 18-DIP (0.600", 15.24mm)
LTD-6630E
| Category | Optoelectronics - LED Character and Numeric - |
| Manufacturer | Lite-On Inc. |
| Series | - |
| Packaging | Tube |
| RoHS Status | |
| Number of Characters | 1.5 |
| Size / Dimension | 0.750" H x 0.984" W x 0.315" D (19.05mm x 25.00mm x 8.00mm) |
| Digit/Alpha Size | 0.56" (14.22mm) |
| Display Type | 7-Segment |
| Common Pin | Common Anode |
| Color | Orange-Red |
| Voltage - Forward (Vf) (Typ) | 2V |
| Current - Test | 20mA |
| Millicandela Rating | 2.4mcd |
| Wavelength - Peak | 630nm |
| Power Dissipation (Max) | 75mW |
| Package / Case | 18-DIP (0.600", 15.24mm) |
| Base Product Number | LTD-6630 |
| Display Format | - |
| Product Attribute |  |
|
 |
 |

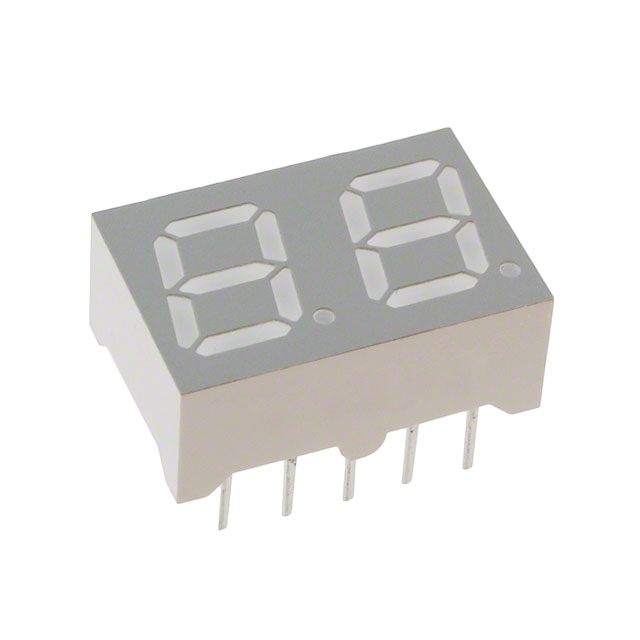

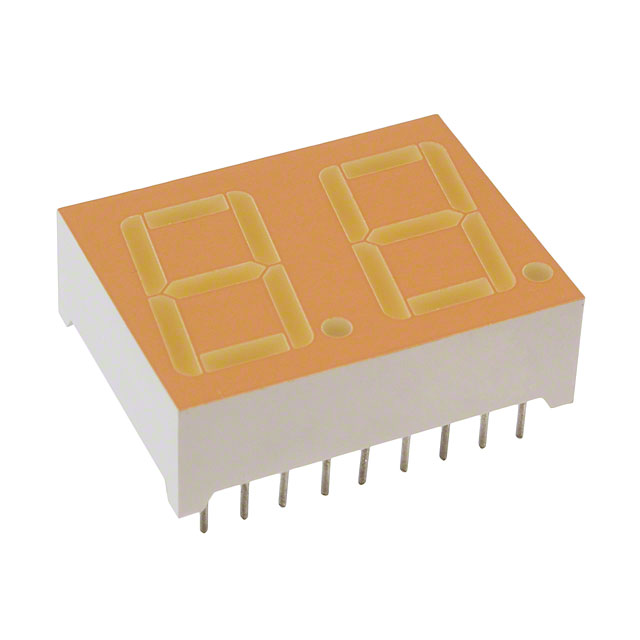

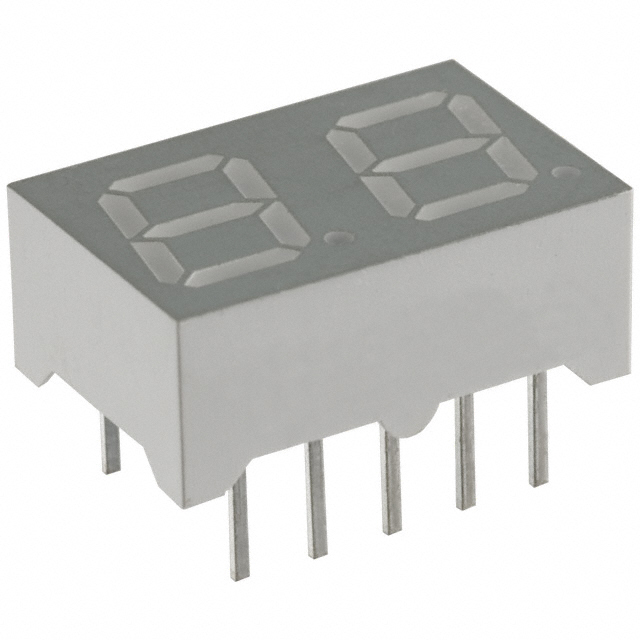

| Part Number | LTD-6610E | LTD-6640E | LTD-2601B | LTD-2601G |
| Manufacturer | Lite-On Inc. | Lite-On Inc. | Lite-On Inc. | Lite-On Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | DISP 7SEG 0.56" DBL OR-RED 18DIP | DISP 7SEG 0.56" DBL OR-RED 18DIP | DISPLAY 7SEG 0.28" DBL BLU 10DIP | DISPLAY 7SEG 0.28" DBL GRN 10DIP |
| Series | - | - | - | - |
| Packaging | Tube | Tube | Tube | Tube |
