Product CatalogPart Number
LTL-30EHJH96
Manufacturer
Lite-On Inc.Description
LED GRN/ORANGE-RED DIFF T/H R/A
Datasheet
DatasheetPackage
Radial - 3 Leads
In Stock
39,155 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
LTL-30EHJH96
LTL-30EHJH96

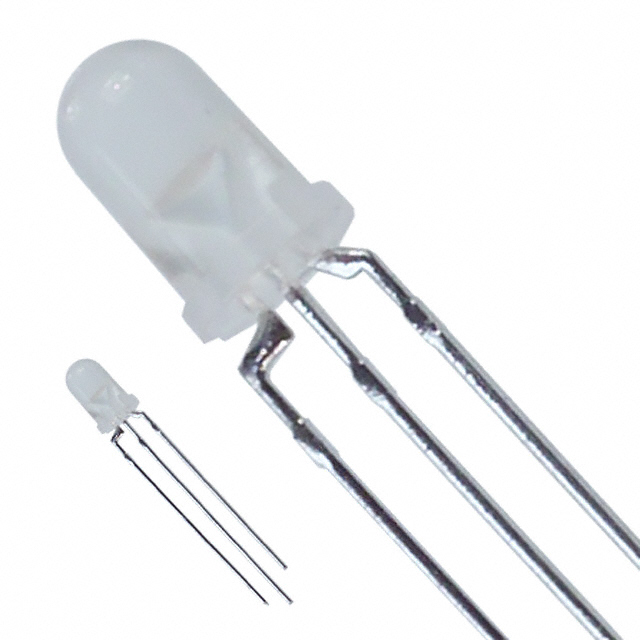

lmages are for reference only.Payment Methods
Delivery Services
Green, Orange-Red 572nm Green, 625nm Orange-Red LED Indication - Discrete 2.1V Green, 2V Orange-Red Radial - 3 Leads
Quick Inquiry
LTL-30EHJH96
Specifications
| Category | Optoelectronics - LED Indication Discrete - |
| Manufacturer | Lite-On Inc. |
| Series | - |
| Packaging | Tray |
| RoHS Status | ROHS3 Compliant |
| Color | Green, Orange-Red |
| Configuration | Common Cathode |
| Lens Color | White |
| Lens Transparency | Diffused |
| Millicandela Rating | 29mcd Green, 40mcd Orange-Red |
| Lens Style | Round with Domed Top |
| Lens Size | 5.00mm Dia |
| Voltage - Forward (Vf) (Typ) | 2.1V Green, 2V Orange-Red |
| Current - Test | 20mA Green, 20mA Orange-Red |
| Viewing Angle | 30° |
| Mounting Type | Through Hole, Right Angle |
| Wavelength - Dominant | 572nm Green, 625nm Orange-Red |
| Wavelength - Peak | 565nm Green, 630nm Orange-Red |
| Features | - |
| Package / Case | Radial - 3 Leads |
| Supplier Device Package | - |
| Size / Dimension | 15.70mm L x 7.50mm W |
| Height (Max) | 7.85mm |
| Base Product Number | LTL-30 |
| Grade | - |
| Qualification | - |
