LTM4661IY
lmages are for reference only.LTM4661IY
IC REG BOOST ADJUSTABLE 4A 25BGA
Datasheet25-PowerBBGA Module
53,547 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Non-Isolated PoL Module DC DC Converter 1 Output 2.5 ~ 5.5V 4A 0.7V - 15V Input
LTM4661IY
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Analog Devices Inc. |
| Series | - |
| Packaging | Tray |
| RoHS Status | RoHS non-compliant |
| Type | Non-Isolated PoL Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 0.7V |
| Voltage - Input (Max) | 15V |
| Voltage - Output 1 | 2.5 ~ 5.5V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 4A |
| Power (Watts) | - |
| Applications | ITE (Commercial) |
| Features | Adjustable Output |
| Operating Temperature | -40°C ~ 125°C |
| Efficiency | 85% |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 25-PowerBBGA Module |
| Size / Dimension | 0.25" L x 0.25" W x 0.10" H (6.3mm x 6.3mm x 2.4mm) |
| Supplier Device Package | 25-BGA (6.25x6.25) |
| Control Features | - |
| Approval Agency | - |
| Standard Number | - |
| Base Product Number | LTM4661 |
| Voltage - Isolation | - |
| Product Attribute |  |
 |
 |
 |

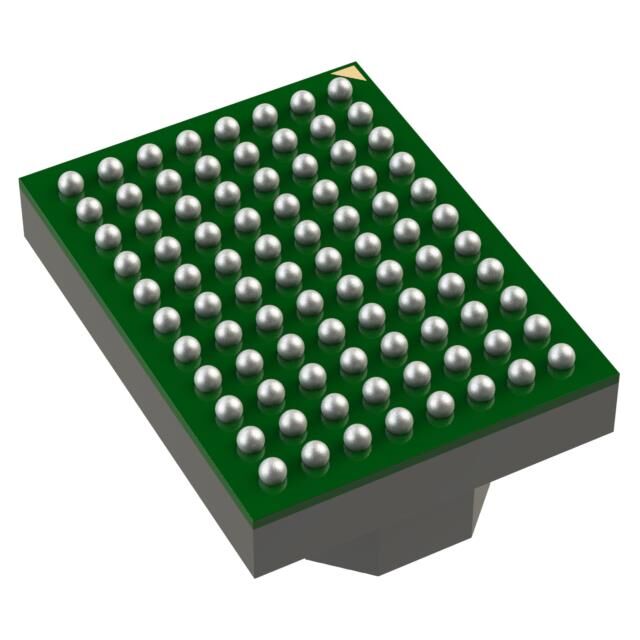

| Part Number | LTM4661IY#PBF | LTM4660IY#PBF | LTM4661EY#PBF | LTM4662EY#PBF |
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC REG BOOST ADJUSTABLE 4A 25BGA | 72V, 300W NON-ISOLATED UMODULE C | IC REG BOOST ADJUSTABLE 4A 25BGA | DC DC CNVRTR 0.6-5.5V 0.6-5.5V |
| Series | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Packaging | Tray | Tray | Tray | Tray |
