LTM4671EY#PBF

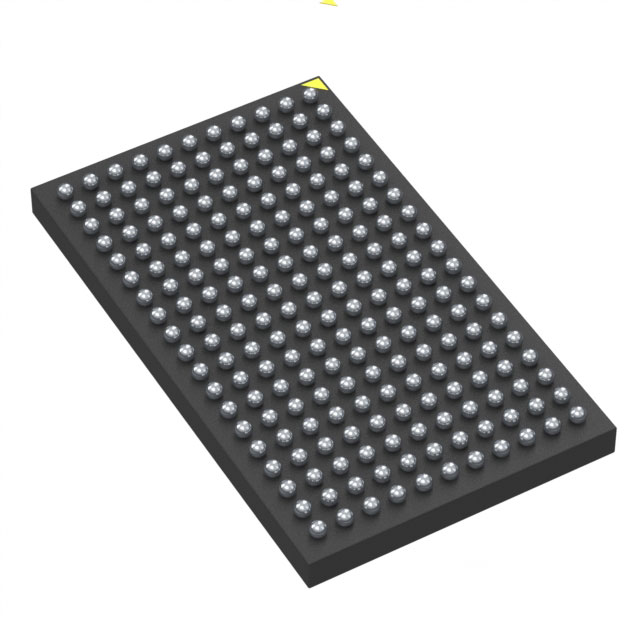

lmages are for reference only.LTM4671EY#PBF
DC DC CONVERTER 2X3.3V 2X5.5V
Datasheet209-BFBGA Module
74,123 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Non-Isolated PoL Module DC DC Converter 4 Output 0.6 ~ 3.3V 0.6 ~ 3.3V 0.6 ~ 5.5V 0.6 ~ 5.5V 12A, 12A, 5A, 5A 3.1V - 20V Input
LTM4671EY#PBF
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Analog Devices Inc. |
| Series | LTM®, uModule® |
| Packaging | Tray |
| RoHS Status | ROHS3 Compliant |
| Type | Non-Isolated PoL Module |
| Number of Outputs | 4 |
| Voltage - Input (Min) | 3.1V |
| Voltage - Input (Max) | 20V |
| Voltage - Output 1 | 0.6 ~ 3.3V |
| Voltage - Output 2 | 0.6 ~ 3.3V |
| Voltage - Output 3 | 0.6 ~ 5.5V |
| Voltage - Output 4 | 0.6 ~ 5.5V |
| Current - Output (Max) | 12A, 12A, 5A, 5A |
| Power (Watts) | - |
| Applications | ITE (Commercial) |
| Features | Adjustable Output, Remote Sense |
| Operating Temperature | -40°C ~ 125°C |
| Efficiency | - |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 209-BFBGA Module |
| Size / Dimension | 0.63" L x 0.37" W x 0.19" H (16.0mm x 9.5mm x 4.9mm) |
| Supplier Device Package | 209-BGA (16x9.5) |
| Control Features | - |
| Approval Agency | - |
| Standard Number | - |
| Base Product Number | LTM4671 |
| Voltage - Isolation | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | LTM4671IY#PBF | LTM4600EV#PBF | LTM4600HVEV#PBF | LTM4600HVIV#PBF |
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DC DC CONVERTER 2X3.3V 2X5.5V | DC DC CONVERTER 0.6-5V | DC DC CONVERTER 0.6-5V | DC DC CONVERTER 0.6-5V |
| Series | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Packaging | Tray | Tray | Tray | Tray |
