LTM4676AIY#PBF

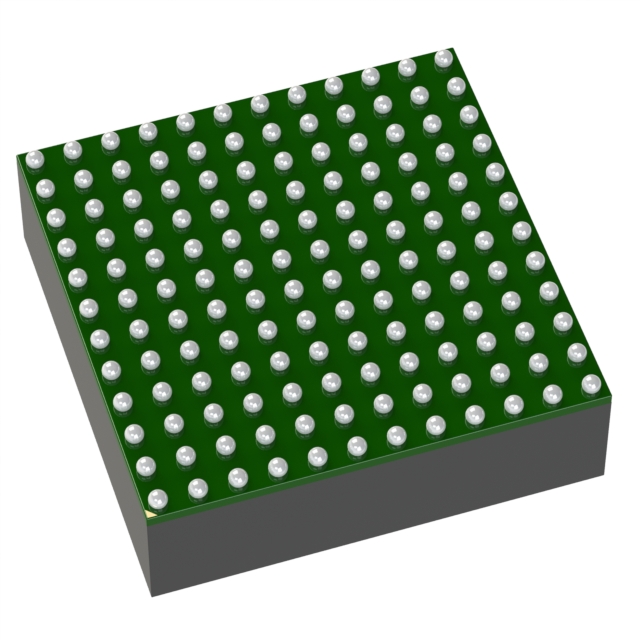

lmages are for reference only.LTM4676AIY#PBF
DC DC CNVRTR 0.5-5.4V 0.5-5.4V
Datasheet144-BBGA Module
22,421 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Non-Isolated PoL Module DC DC Converter 2 Output 0.5 ~ 5.4V 0.5 ~ 5.4V 13A, 13A 4.5V - 26.5V Input
LTM4676AIY#PBF
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Analog Devices Inc. |
| Series | µModule® |
| Packaging | Tray |
| RoHS Status | ROHS3 Compliant |
| Type | Non-Isolated PoL Module |
| Number of Outputs | 2 |
| Voltage - Input (Min) | 4.5V |
| Voltage - Input (Max) | 26.5V |
| Voltage - Output 1 | 0.5 ~ 5.4V |
| Voltage - Output 2 | 0.5 ~ 5.4V |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 13A, 13A |
| Power (Watts) | - |
| Applications | ITE (Commercial) |
| Features | OCP, OTP, OVP, SCP, UVLO |
| Operating Temperature | -40°C ~ 125°C |
| Efficiency | - |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 144-BBGA Module |
| Size / Dimension | 0.63" L x 0.63" W x 0.20" H (16.0mm x 16.0mm x 5.0mm) |
| Supplier Device Package | 144-BGA (16x16) |
| Control Features | - |
| Approval Agency | - |
| Standard Number | - |
| Base Product Number | LTM4676 |
| Voltage - Isolation | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | LTM4676AEY#PBF | LTM4676AIY | LTM4600EV#PBF | LTM4600HVEV#PBF |
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| RoHS Status | ROHS3 Compliant | RoHS non-compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DC DC CNVRTR 0.5-5.4V 0.5-5.4V | DC DC CNVRTR 0.5-5.4V 0.5-5.4V | DC DC CONVERTER 0.6-5V | DC DC CONVERTER 0.6-5V |
| Series | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Packaging | Tray | Tray | Tray | Tray |
