LTRBR8SF-8A7B-0107-0-0-R18-ZP

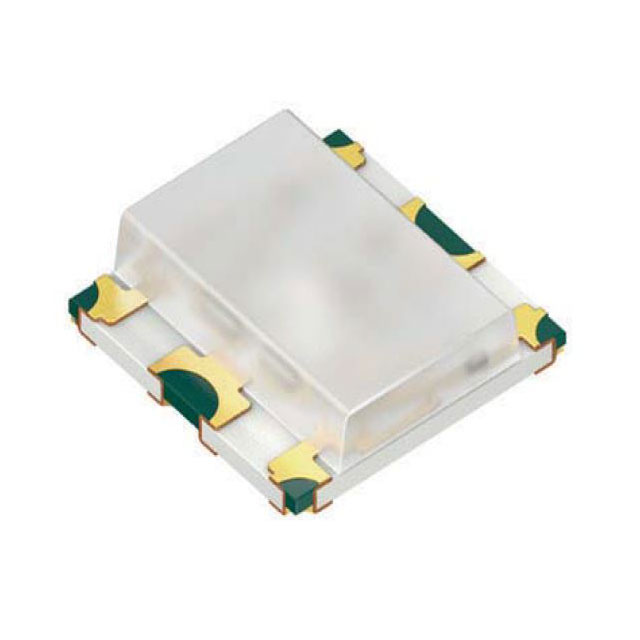

lmages are for reference only.LTRBR8SF-8A7B-0107-0-0-R18-ZP
LED RGB DIFFUSED SMD
Datasheet6-SMD, No Lead
87,720 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Red, Green, Blue (RGB) 625nm Red, 528nm Green, 463nm Blue LED Indication - Discrete 2.1V Red, 3.3V Green, 3.3V Blue 6-SMD, No Lead
LTRBR8SF-8A7B-0107-0-0-R18-ZP
| Category | Optoelectronics - LED Indication Discrete - |
| Manufacturer | ams-OSRAM USA INC. |
| Series | Multi CHIPLED |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Color | Red, Green, Blue (RGB) |
| Configuration | - |
| Lens Color | White |
| Lens Transparency | Diffused |
| Millicandela Rating | 720mcd Red, 1100mcd Green, 360mcd Blue |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 3.00mm x 2.20mm |
| Voltage - Forward (Vf) (Typ) | 2.1V Red, 3.3V Green, 3.3V Blue |
| Current - Test | 20mA Red, 20mA Green, 20mA Blue |
| Viewing Angle | 130° |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | 625nm Red, 528nm Green, 463nm Blue |
| Wavelength - Peak | - |
| Features | - |
| Package / Case | 6-SMD, No Lead |
| Supplier Device Package | SMD |
| Size / Dimension | 3.00mm L x 3.00mm W |
| Height (Max) | 0.95mm |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
| Product Attribute | |
|
|
|
| Part Number | LTRBR8SF-8A7B-0107-0-0-R18-ZTP | LTRBR8SF-8A7B-0117-0-0-R18-ZP | LTRBR8SF-8A7B-0117-0-0-R18-ZPT | LTRBR8SF-8A7B-0117-0-0-R33-ZP-XX |
| Manufacturer | ams-OSRAM USA INC. | ams-OSRAM USA INC. | ams-OSRAM USA INC. | ams-OSRAM USA INC. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | LED RGB DIFFUSED SMD | LED RGB DIFFUSED CHIP SMD | LED RGB DIFFUSED SMD | LED RGB DIFFUSED 6SMD |
| Series | ams-OSRAM USA INC. | ams-OSRAM USA INC. | ams-OSRAM USA INC. | ams-OSRAM USA INC. |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Bulk |
