LTST-C230KAKT
lmages are for reference only.LTST-C230KAKT
LED RED-ORG CLR CHIP SMD BOT ENT
Datasheet1206 (3216 Metric)
62,841 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Red-Orange 615nm LED Indication - Discrete 2V 1206 (3216 Metric)
LTST-C230KAKT
| Category | Optoelectronics - LED Indication Discrete - |
| Manufacturer | Lite-On Inc. |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | |
| Color | Red-Orange |
| Configuration | Standard |
| Lens Color | Colorless |
| Lens Transparency | Clear |
| Millicandela Rating | 55mcd |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 1.49mm x 1.60mm |
| Voltage - Forward (Vf) (Typ) | 2V |
| Current - Test | 20mA |
| Viewing Angle | 130° |
| Mounting Type | Surface Mount, Bottom Entry |
| Wavelength - Dominant | 615nm |
| Wavelength - Peak | 621nm |
| Features | - |
| Package / Case | 1206 (3216 Metric) |
| Supplier Device Package | Chip LED |
| Size / Dimension | 3.20mm L x 1.60mm W |
| Height (Max) | 1.10mm |
| Base Product Number | LTST-C230 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

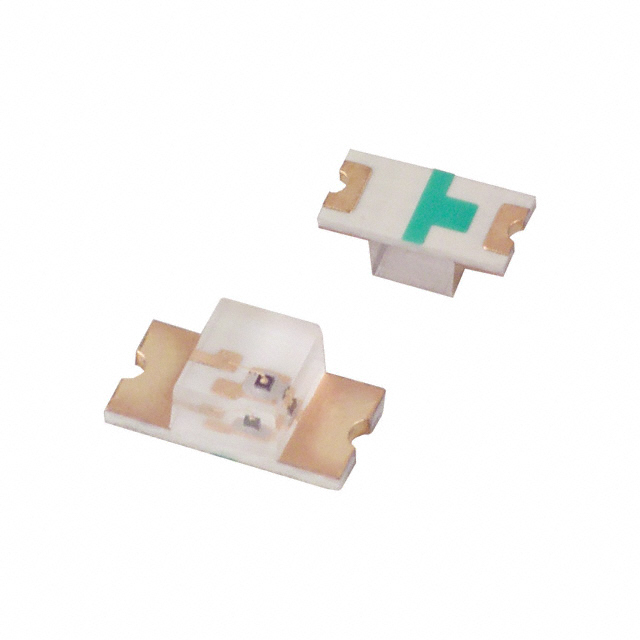

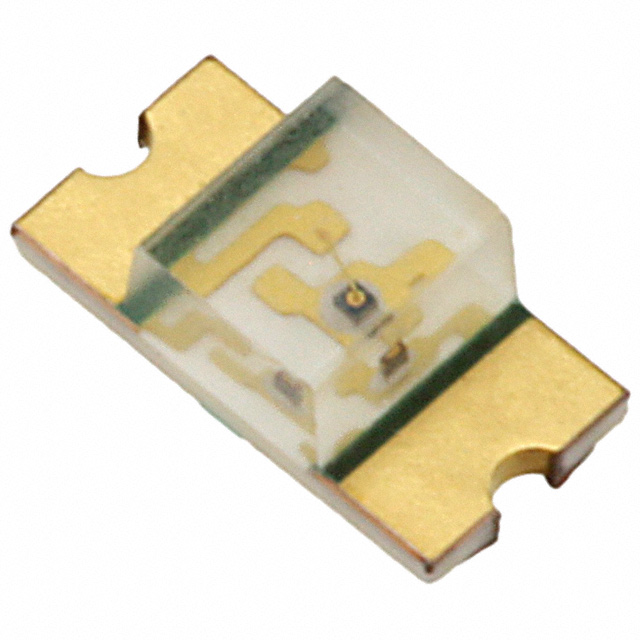

| Part Number | LTST-C230KFKT | LTST-C230KGKT | LTST-C230KRKT | LTST-C230KSKT |
| Manufacturer | Lite-On Inc. | Lite-On Inc. | Lite-On Inc. | Lite-On Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | LED ORG CLEAR CHIP SMD BOT ENT | LED GREEN CLEAR CHIP SMD BOT ENT | LED RED CLR CHIP SMD BOTTOM ENT | LED YL CLEAR CHIP SMD BOTTOM ENT |
| Series | Lite-On Inc. | Lite-On Inc. | Lite-On Inc. | Lite-On Inc. |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
