Product CatalogPart Number
LTST-E683RGB
Manufacturer
Lite-On Inc.Description
LED RGB CLEAR 4PLCC SMD
Datasheet
DatasheetPackage
4-PLCC
In Stock
82,686 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
LTST-E683RGB
LTST-E683RGB
lmages are for reference only.Payment Methods
Delivery Services
Red, Green, Blue (RGB) 631nm Red, 525nm Green, 470nm Blue LED Indication - Discrete 2.1V Red, 3.3V Green, 3.3V Blue 4-PLCC
Quick Inquiry
LTST-E683RGB
Specifications
| Category | Optoelectronics - LED Indication Discrete - |
| Manufacturer | Lite-On Inc. |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | |
| Color | Red, Green, Blue (RGB) |
| Configuration | Common Anode |
| Lens Color | Colorless |
| Lens Transparency | Clear |
| Millicandela Rating | 147.5mcd Red, 627.5mcd Green, 247.5mcd Blue |
| Lens Style | Round with Flat Top |
| Lens Size | - |
| Voltage - Forward (Vf) (Typ) | 2.1V Red, 3.3V Green, 3.3V Blue |
| Current - Test | 20mA Red, 20mA Green, 20mA Blue |
| Viewing Angle | 120° |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | 631nm Red, 525nm Green, 470nm Blue |
| Wavelength - Peak | 639nm Red, 518nm Green, 468nm Blue |
| Features | - |
| Package / Case | 4-PLCC |
| Supplier Device Package | 4-PLCC |
| Size / Dimension | 3.20mm L x 2.80mm W |
| Height (Max) | 2.00mm |
| Base Product Number | LTST-E683 |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute | |
|
 |
|

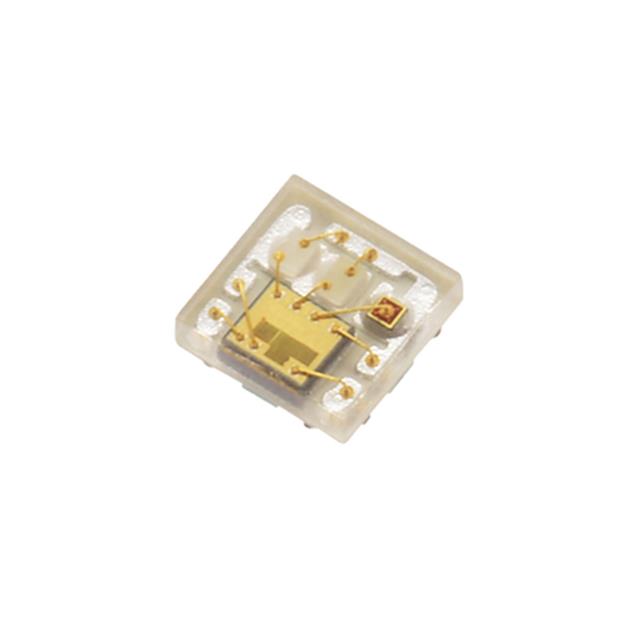

| Part Number | LTST-E683RGBW | LTST-E133CEGBK | LTST-E133HEGBK | LTST-E143EGBW-P1 |
| Manufacturer | Lite-On Inc. | Lite-On Inc. | Lite-On Inc. | Lite-On Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | LED RGB DIFFUSED 4PLCC SMD | LED RGB CLEAR SMD | LED RGB CLEAR SMD | LED RGB DIFFUSED SMD |
| Series | Lite-On Inc. | Lite-On Inc. | Lite-On Inc. | Lite-On Inc. |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
